Statistical Models

Lecture 5

Dr. Silvio Fanzon
S.Fanzon@hull.ac.uk

University of Hull

Lecture 5:
Two-sample F-test &
Goodness-of-fit test

Outline of Lecture 5

  1. The F-distribution
  2. Two-sample F-test
  3. Worked Example
  4. The goodness-of-fit test
  5. Worked Examples

Part 1:
The F-distribution

Recall

The chi-squared distribution with p degrees of freedom is \chi_p^2 = Z_1^2 + \ldots + Z_p^2 \qquad \text{where} \qquad Z_1, \ldots, Z_n \,\,\, \text{iid} \,\,\, N(0, 1)

Chi-squared distribution was used to:

  • Describe distribution of sample variance S^2: \frac{(n-1)S^2}{\sigma^2} \sim \chi_{n-1}^2

  • Define t-distribution with p degrees of freedom: t_p \sim \frac{U}{\sqrt{V/p}} \qquad \text{where} \qquad U \sim N(0,1) \,, \quad V \sim \chi_p^2 \quad \text{ independent}

The F-distribution

Definition
The r.v. F has F-distribution with p and q degrees of freedom if the pdf is f_F(x) = \frac{ \Gamma \left(\frac{p+q}{2} \right) }{ \Gamma \left( \frac{p}{2} \right) \Gamma \left( \frac{q}{2} \right) } \left( \frac{p}{q} \right)^{p/2} \, \frac{ x^{ (p/2) - 1 } }{ [ 1 + (p/q) x ]^{(p+q)/2} } \,, \quad x > 0

Notation: F-distribution with p and q degrees of freedom is denoted by F_{p,q}

Remark: Used to describes variance estimators for independent samples

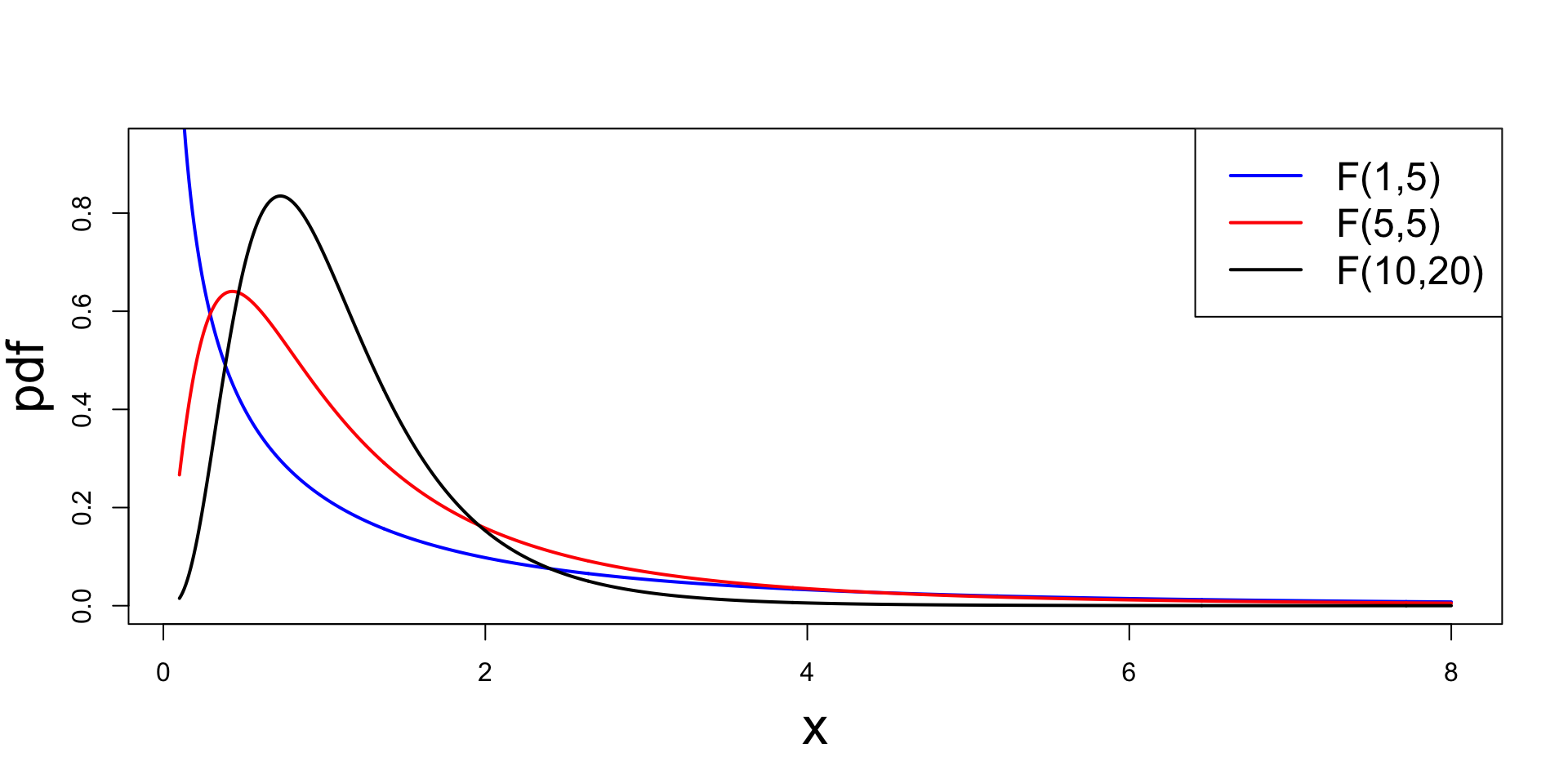

Plot of F-distributions

Characterization of F-distribution

The F-distribution is obtained as ratio of 2 independent chi-squared distributions

Theorem
Suppose that U \sim \chi_p^2 and V \sim \chi_q^2 are independent. Then X := \frac{U/p}{V/q} \sim F_{p,q}

Idea of Proof

  • This is similar to the proof (seen in Homework 2) that \frac{U}{\sqrt{V/p}} \sim t_p where U \sim N(0,1) and V \sim \chi_p^2 are independent

  • In our case we need to prove X := \frac{U/p}{V/q} \sim F_{p,q} where U \sim \chi_p^2 and V \sim \chi_q^2 are independent

Idea of Proof

  • U \sim \chi_{p}^2 and V \sim \chi_q^2 are independent. Therefore \begin{align*} f_{U,V} (u,v) & = f_U(u) f_V(v) \\ & = \frac{ 1 }{ \Gamma \left( \frac{p}{2} \right) \Gamma \left( \frac{q}{2} \right) 2^{(p+q)/2} } u^{\frac{p}{2} - 1} v^{\frac{q}{2} - 1} e^{-(u+v)/2} \end{align*}

  • Consider the change of variables x(u,v) := \frac{u/p}{v/q} \,, \quad y(u,v) := u + v

Idea of Proof

  • This way we have X = \frac{U/p}{V/q} \,, \qquad Y = U + V

  • To conclude the proof, we need to compute the pdf of X, that is f_X

  • This can be computed as the X marginal of f_{X,Y} f_{X}(x) = \int_{0}^\infty f_{X,Y}(x,y) \, dy

Idea of Proof

  • The joint pdf f_{X,Y} can be computed by inverting the change of variables x(u,v) := \frac{u/p}{v/q} \,, \quad y(u,v) := u + v and using the formula f_{X,Y}(x,y) = f_{U,V}(u(x,y),v(x,y)) \, |\det J| where J is the Jacobian of the inverse transformation (x,y) \mapsto (u(x,y),v(x,y))

Idea of Proof

  • Since f_{U,V} is known, then also f_{X,Y} is known

  • Moreover the integral f_{X}(x) = \int_{0}^\infty f_{X,Y}(x,y) \, dy can be explicitly computed, yielding the thesis f_{X}(x) = \frac{ \Gamma \left(\frac{p+q}{2} \right) }{ \Gamma \left( \frac{p}{2} \right) \Gamma \left( \frac{q}{2} \right) } \left( \frac{p}{q} \right)^{p/2} \, \frac{ x^{ (p/2) - 1 } }{ [ 1 + (p/q) x ]^{(p+q)/2} }

Properties of F-distribution

Theorem

  1. Suppose X \sim F_{p,q} with q>2. Then {\rm I\kern-.3em E}[X] = \frac{q}{q-2}

  2. If X \sim F_{p,q} then 1/X \sim F_{q,p}

  3. If X \sim t_q then X^2 \sim F_{1,q}

Properties of F-distribution

Proof of Theorem

  1. Requires a bit of work (omitted)

  2. By the Theorem in Slide 6, we have X \sim F_{p,q} \quad \implies \quad X = \frac{U/p}{V/q} with U \sim \chi_p^2 and V \sim \chi_q^2 independent. Therefore \frac{1}{X} = \frac{V/q}{U/p} \sim \frac{\chi^2_q/q}{\chi^2_p/p} \sim F_{q,p}

Properties of F-distribution

Proof of Theorem

  1. Suppose X \sim t_q. The Theorem in Slide 118 of Lecture 2, guarantees that X = \frac{U}{\sqrt{V/q}} where U \sim N(0,1) and V \sim \chi_q^2 are independent. Therefore X^2 = \frac{U^2}{V/q}

Properties of F-distribution

Proof of Theorem

  • Since U \sim N(0,1), by definition U^2 \sim \chi_1^2.
  • Moreover U^2 and V are independet, since U and V are independent
  • Finally, the Theorem in Slide 6 implies X^2 = \frac{U^2}{V/q} \sim \frac{\chi_1^2/1}{\chi_q^2/q} \sim F_{1,q}

Part 2:
Two-sample F-test

Variance estimators

Suppose given independent random samples from 2 normal populations:

  • X_1, \ldots, X_n iid random sample from N(\mu_X, \sigma_X^2)
  • Y_1, \ldots, Y_m iid random sample from N(\mu_Y, \sigma_Y^2)

Problem:

  • We want to compare variance of the 2 populations
  • We do it by studying the variances ratio \frac{\sigma_X^2}{\sigma_Y^2}

Variance estimators

Question:

  • Suppose the variances \sigma_X^2 and \sigma_Y^2 are unknown
  • How can we estimate the ratio \sigma_X^2 /\sigma_Y^2 \, ?

Answer:

  • Estimate the ratio \sigma_X^2 /\sigma_Y^2 \, using sample variances S^2_X / S^2_Y

  • The F-distribution allows to compare the quantities \sigma_X^2 /\sigma_Y^2 \qquad \text{and} \qquad S^2_X / S^2_Y

Variance ratio distribution

Theorem
Suppose given independent random samples from 2 normal populations:

  • X_1, \ldots, X_n iid random sample from N(\mu_X, \sigma_X^2)
  • Y_1, \ldots, Y_m iid random sample from N(\mu_Y, \sigma_Y^2)

The random variable F = \frac{ S_X^2 / \sigma_X^2 }{ S_Y^2 / \sigma_Y^2 } \, \sim \, F_{n-1,m-1} that is, F is F-distributed with n-1 and m-1 degrees of freedom

Variance ratio distribution

Proof

  • We need to prove F = \frac{ S_X^2 / \sigma_X^2 }{ S_Y^2 / \sigma_Y^2 } \sim F_{n-1,m-1}

  • By the Theorem in Slide 101 Lecture 2, we have that \frac{S_X^2}{ \sigma_X^2} \sim \frac{\chi_{n-1}^2}{n-1} \,, \qquad \frac{S_Y^2}{ \sigma_Y^2} \sim \frac{\chi_{m-1}^2}{m-1}

Variance ratio distribution

Proof

  • Therefore F = \frac{ S_X^2 / \sigma_X^2 }{ S_Y^2 / \sigma_Y^2 } = \frac{U/p}{V/q} where we have U \sim \chi_{p}^2 \,, \qquad V \sim \chi_q^2 \,, \qquad p = n-1 \,, \qquad q = m - 1

  • By the Theorem in Slide 6, we infer the thesis F = \frac{U/p}{V/q} \sim F_{n-1,m-1}

Unbiased estimation of variance ratio

Question: Why is S_X^2/S_Y^2 a good estimator for \sigma_X^2/\sigma_Y^2

Answer:

  • Because S_X^2/S_Y^2 is (asymptotically) unbiased estimator of \sigma_X^2/\sigma_Y^2
  • This is shown in the following Theorem

Unbiased estimation of variance ratio

Theorem
Suppose given independent random samples from 2 normal populations:

  • X_1, \ldots, X_n iid random sample from N(\mu_X, \sigma_X^2)
  • Y_1, \ldots, Y_m iid random sample from N(\mu_Y, \sigma_Y^2)

It holds that {\rm I\kern-.3em E}\left[ \frac{S_X^2}{S_Y^2} \right] = \frac{m-1}{m-3} \frac{\sigma_X^2}{\sigma_Y^2} \,, \qquad \lim_{m \to \infty} {\rm I\kern-.3em E}\left[ \frac{S_X^2}{S_Y^2} \right] = \frac{\sigma_X^2}{\sigma_Y^2}

The F-statistic

Assumption: Suppose given 2 samples from independent normal populations

X_1, \ldots, X_n \, \text{ iid from } \, N(\mu_X, \sigma_X^2) \,, \qquad \quad Y_1, \ldots, Y_m \, \text{ iid from } \, N(\mu_Y, \sigma_Y^2)

Definition
The F-statistic is defined as F := \frac{ S_X^2 / \sigma_X^2 }{ S_Y^2 / \sigma_Y^2 } \, \sim \, F_{n-1,m-1}

Note: Under the Null hypothesis that \sigma_X^2 = \sigma_Y^2, the F-statistic simplifies to F = \frac{ S_X^2 }{ S_Y^2 }

The two-sample F-test

Suppose given two independent samples

x_1, \ldots, x_n \, \text{ iid from } \, N(\mu_X, \sigma_X^2) \,, \qquad \quad y_1, \ldots, y_m \, \text{ iid from } \, N(\mu_Y, \sigma_Y^2)

The hypotheses for difference in variance are H_0 \colon \sigma_X^2 = \sigma_Y^2 \,, \quad \qquad H_1 \colon \sigma_X^2 \neq \sigma_Y^2 \quad \text{ or } \quad H_1 \colon \sigma_X^2 > \sigma_Y^2

Very important: We only consider two-sided and right-tailed hypotheses

  • This is because we can always label the samples in a way that s_X^2 \geq s_Y^2

  • Therefore, there is no reason to suspect that \sigma_X^2 < \sigma_Y^2

  • This allows us to work only with upper quantiles
    (and avoid a lot of trouble, as the F-distribution is asymmetric)

Procedure: 3 Steps

  1. Calculation: Compute the two-sample F-statistic F = \frac{ s_X^2}{ s_Y^2} where sample variances are s_X^2 = \frac{\sum_{i=1}^n x_i^2 - n \overline{x}^2}{n-1} \qquad \quad s_Y^2 = \frac{\sum_{i=1}^m y_i^2 - m \overline{y}^2}{m-1}

Very important: s_X^2 refers to the sample with largest variance

\implies \quad s_X^2 \geq s_Y^2 \,, \qquad F \geq 1

  1. Statistical Tables or R: Find either


  1. Interpretation: Reject H_0 when either p < 0.05 \qquad \text{ or } \qquad F \in \,\,\text{Rejection Region} \qquad \qquad \qquad \qquad (X \, \sim \, F_{n-1,m-1})
Alternative Rejection Region F^* p-value
\sigma^2_X \neq \sigma^2_Y F > F^* F_{n-1, m-1}(0.025) 2P(X > F)
\sigma^2_X > \sigma^2_Y F > F^* F_{n -1, m-1}(0.05) P(X > F)

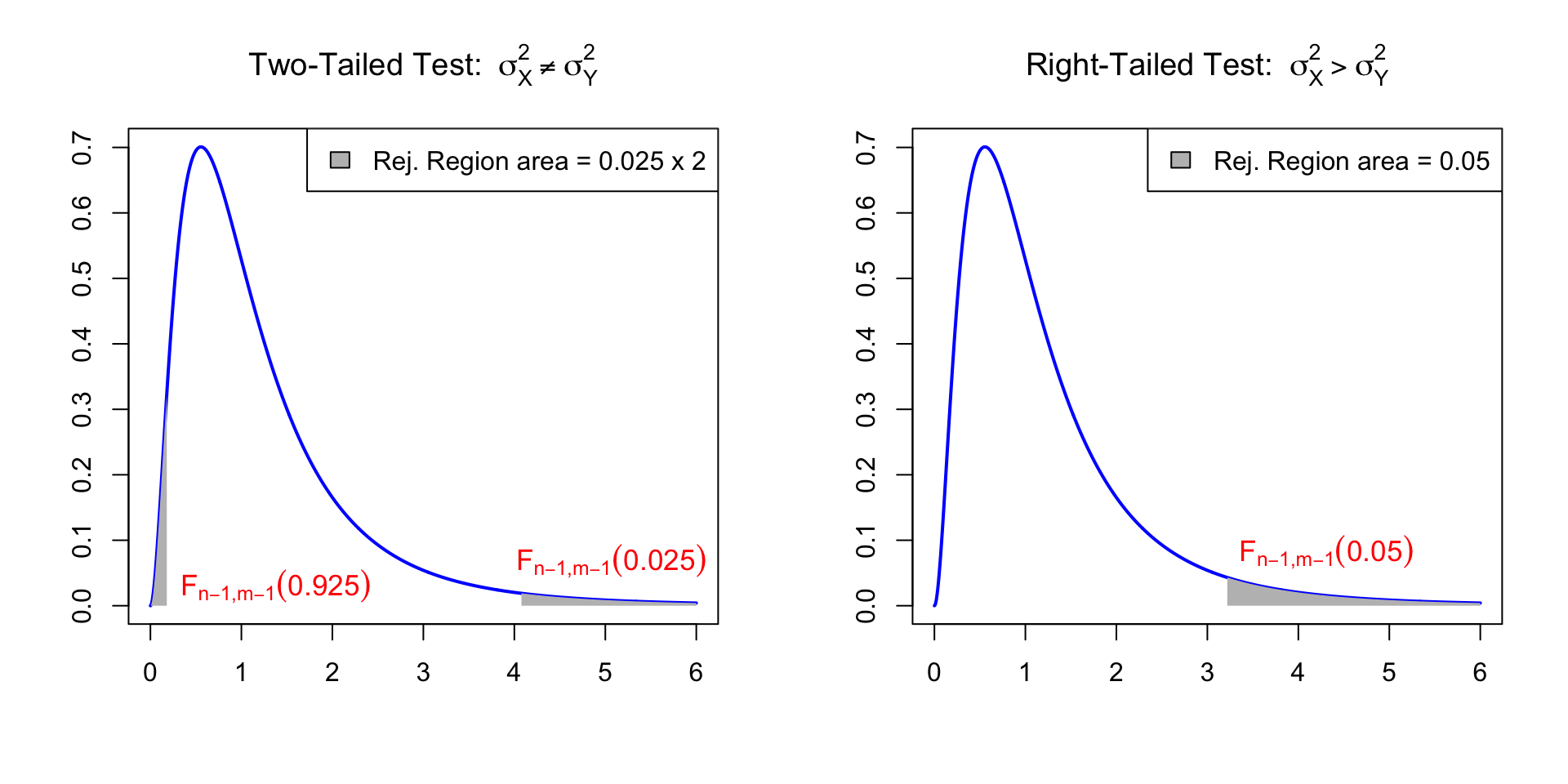

  • Reject H_0 if F-statistic falls in the Rejection Region (in gray)

  • Recall F \geq 1 \implies for two-sided test we only need to check if F > F_{n-1,m-1}(0.025)

Tables: Critical values of F distribution

  • Always construct F-statistic as F = \frac{s^2_X}{s^2_Y} \quad\quad \text{where} \quad\quad s^2_X \geq s^2_Y \qquad \implies \qquad F \geq 1

  • This way only the upper critical values of F-distribution are needed

  • Upper critical values for F distribution are in Tables 3, 4

Table # Critical values
3 F_{\nu_1,\nu_2} (0.05)
4 F_{\nu_1,\nu_2} (0.025)

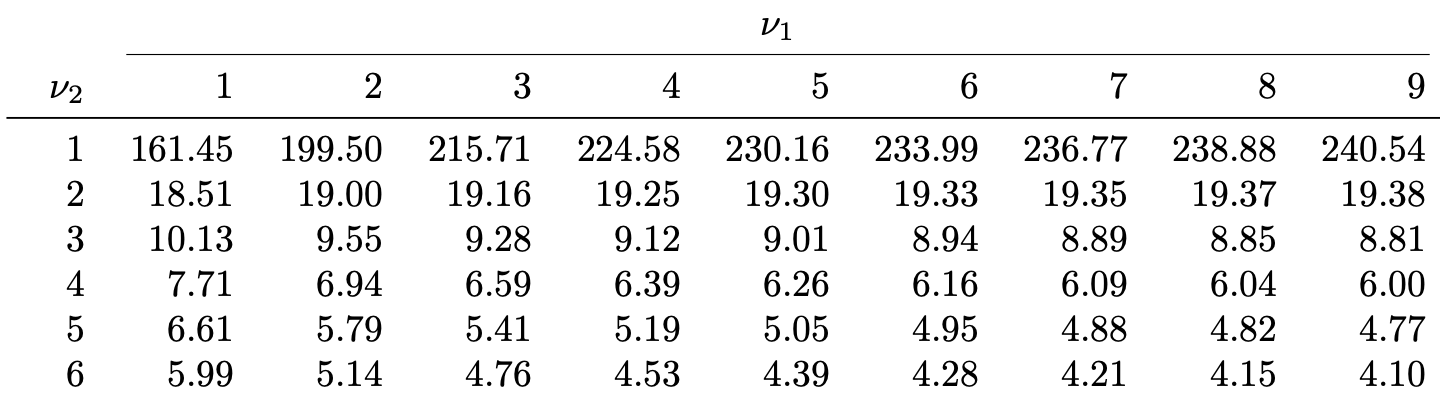

Table 3 in Statistics_Tables.pdf

Table 3: Lists the values F_{\nu_1,\nu_2}(0.05), which means

P(X > F_{\nu_1,\nu_2}(0.05)) = 0.05 \,, \qquad \text{ when } \quad X \sim F_{\nu_1,\nu_2}

For example F_{9, 6}(0.05) = 4.10

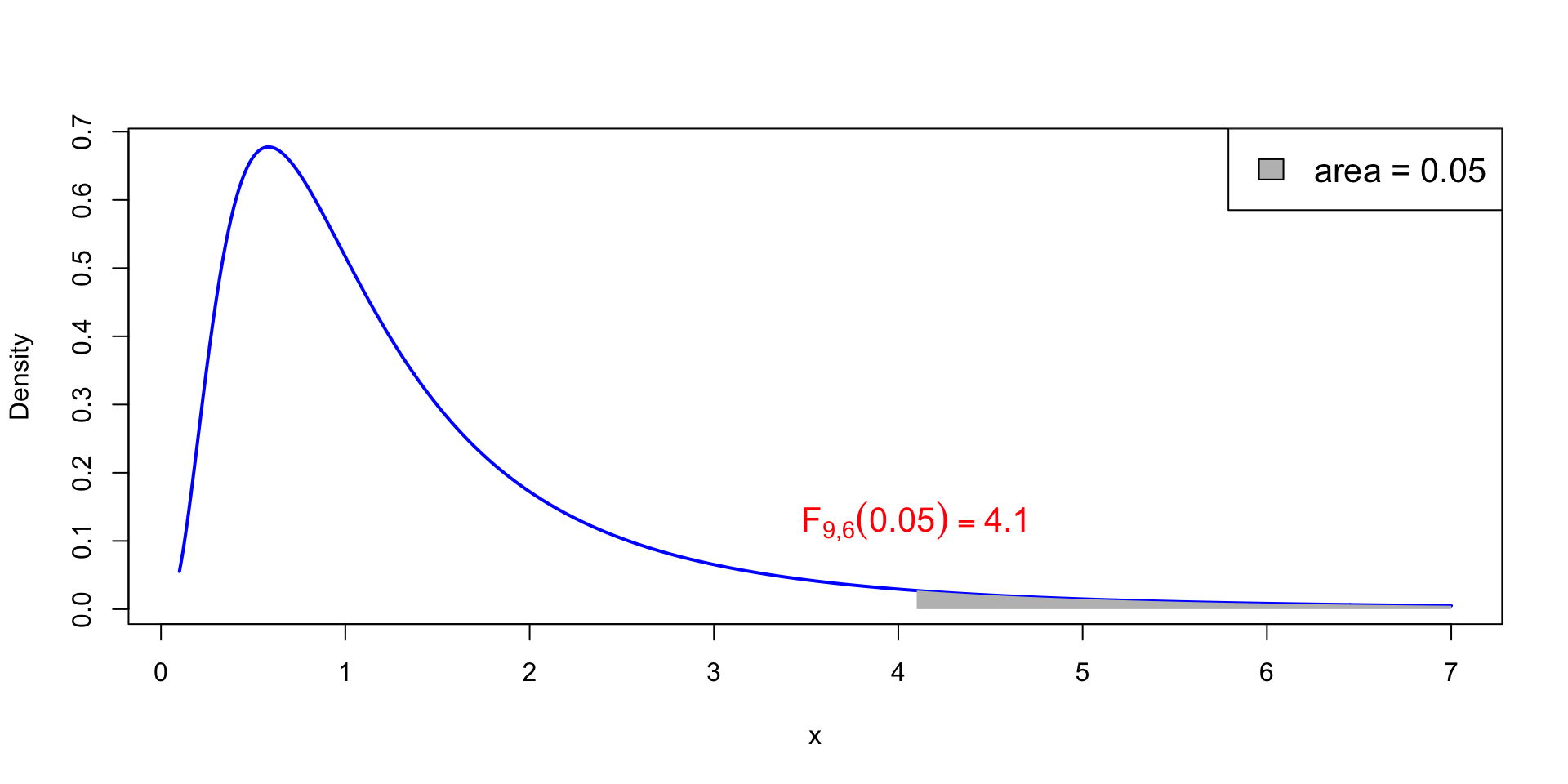

Plot of F_{9,6} distribution. White area is 0.95. Shaded area is 0.05 P(F_{9,6} > 4.10) = 0.05 \,, \qquad 4.10 = F_{9,6}(0.05)

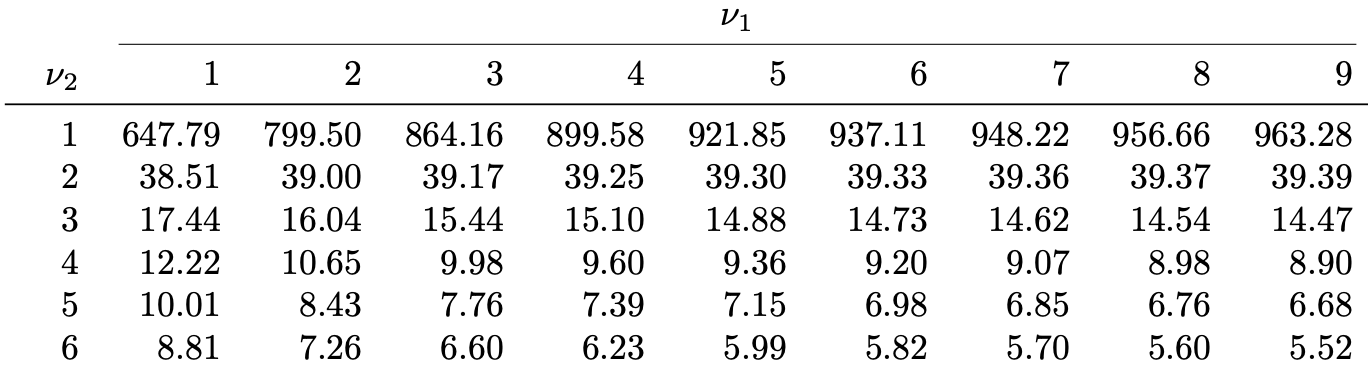

Table 4 in Statistics_Tables.pdf

Table 4: Lists the values F_{\nu_1,\nu_2}(0.025), which means

P(X > F_{\nu_1,\nu_2}(0.025)) = 0.025 \,, \qquad \text{ when } \quad X \sim F_{\nu_1,\nu_2}

For example F_{9, 6}(0.025) = 5.52

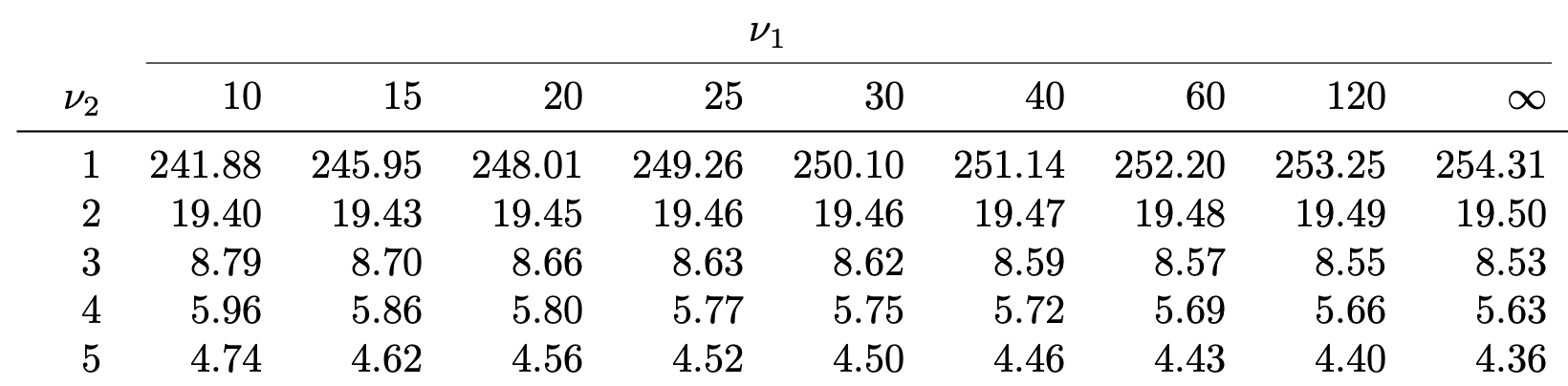

What about missing values?

  • Sometimes the value F_{\nu_1,\nu_2}(\alpha) is missing from F-table

  • In such case approximate F_{\nu_1,\nu_2}(\alpha) with average of closest entries available

Example: F_{21,5}(0.05) is missing. We can approximate it by F_{21,5}(0.05) \approx \frac{F_{20,5}(0.05) + F_{25,5}(0.05)}{2} = \frac{ 4.56 + 4.52 }{ 2 } = 4.54

The two-sample F-test in R

  1. Store the samples x_1,\ldots,x_n and y_1,\ldots,y_m in two R vectors
    • x <- c(x1, ..., xn)
    • y <- c(y1, ..., ym)
  2. Perform a two-sample F-test on x and y
Alternative R command
\sigma_X^2 \neq \sigma_Y^2 var.test(x, y)
\sigma_X^2 > \sigma_Y^2 var.test(x, y, alt = "greater")
  1. Read output: similar to two-sample t-test
    • The main quantity of interest is p-value

Part 3:
Worked Example

  • Data: Wages of 10 Mathematicians and 13 Accountants (again!)

  • Assumptions: Wages are independent and normally distributed

Mathematicians 36 40 46 54 57 58 59 60 62 63
Accountants 37 37 42 44 46 48 54 56 59 60 60 64 64

  • Last week, we conducted a two-sample t-test for equality of means H_0 \colon \mu_X = \mu_Y \,, \qquad H_1 \colon \mu_X \neq \mu_Y

  • We concluded that there is no evidence (p>0.05) of difference in pay levels

  • However, the two-sample t-test assumed equal variance \sigma_X^2 = \sigma_Y^2

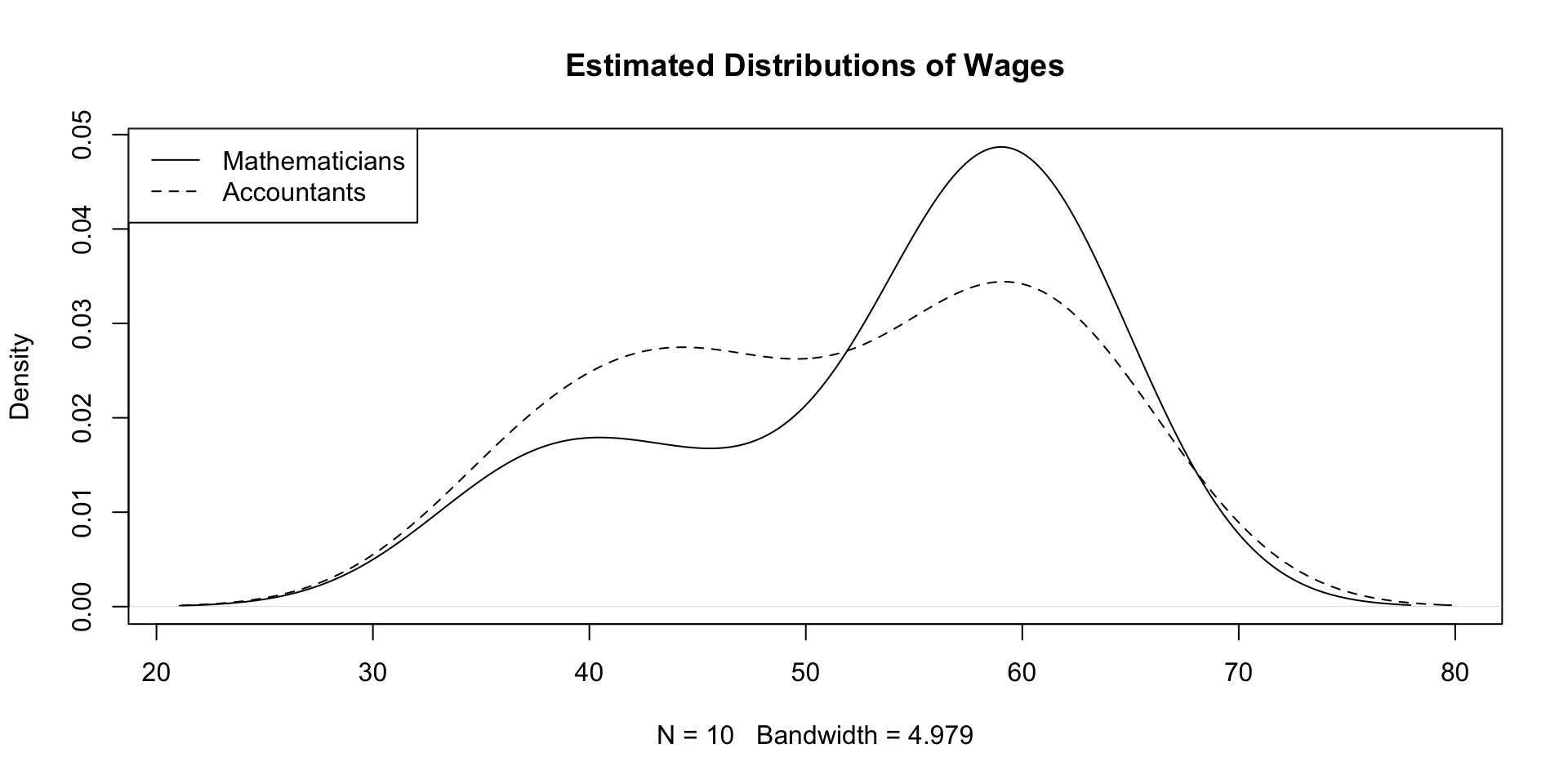

  • We checked this assumption by plotting the estimated sample distributions

View the R Code
# Enter the Wages data
mathematicians <- c(36, 40, 46, 54, 57, 58, 59, 60, 62, 63)
accountants <- c(37, 37, 42, 44, 46, 48, 54, 56, 59, 60, 60, 64, 64)

# Compute the estimated distributions
d.math <- density(mathematicians)
d.acc <- density(accountants)

# Plot the estimated distributions

plot(d.math,                                    # Plot d.math
     xlim = range(c(d.math$x, d.acc$x)),        # Set x-axis range
     ylim = range(c(d.math$y, d.acc$y)),        # Set y-axis range
     main = "Estimated Distributions of Wages") # Add title to plot
lines(d.acc,                                    # Layer plot of d.acc
      lty = 2)                                  # Use different line style

legend("topleft",                               # Add legend at top-left
       legend = c("Mathematicians",             # Labels for legend
                  "Accountants"),
       lty = c(1, 2))                           # Assign curves to legend

  • The plot shows that the two populations have similar variance (spread)

  • Thanks to the F-test, we can now compare variances in a quantitative way

Setting up the F-test

  • We want to test for equality of the two variances

  • There is no prior reason to believe that pay in one group is more spread out

  • Therefore, a two-sided test is appropriate H_0 \colon \sigma_X^2 = \sigma_Y^2 \,, \qquad H_1 \colon \sigma_X^2 \neq \sigma_Y^2

  • First task is to compute the F-statistic F = \frac{s_X^2}{s_Y^2}

  • Important: We need to make sure the samples are labelled so that s_X^2 \geq s_Y^2

1. Calculation

Variance of first sample (Already done last week!)

  • Sample size: \ n = No. of Mathematicians = 10

  • Mean: \bar{x} = \frac{\sum_{i=1}^n x_i}{n} = \frac{36+40+46+ \ldots +62+63}{10}=\frac{535}{10}=53.5

  • Variance: \begin{align*} \sum_{i=1}^n x_i^2 & = 36^2+40^2+46^2+ \ldots +62^2+63^2 = 29435 \\ s^2_X & = \frac{\sum_{i=1}^n x_i^2 - n \bar{x}^2}{n -1 } = \frac{29435-10(53.5)^2}{9} = 90.2778 \end{align*}

1. Calculation

Variance of second sample (Already done last week!)

  • Sample size: \ m = No. of Accountants = 13

  • Mean: \bar{y} = \frac{37+37+42+ \dots +64+64}{13} = \frac{671}{13} = 51.6154

  • Variance: \begin{align*} \sum_{i=1}^m y_i^2 & = 37^2+37^2+42^2+ \ldots +64^2+64^2 = 35783 \\ s^2_Y & = \frac{\sum_{i=1}^m y_i^2 - m \bar{y}^2}{m - 1} = \frac{35783-13(51.6154)^2}{12} = 95.7547 \end{align*}

1. Calculation

The F-statistic

  • Notice that s^2_Y = 95.7547 > 90.2778 = s_X^2

  • Hence the F-statistic is F = \frac{s^2_Y}{s_X^2} = \frac{95.7547}{90.2778} = 1.061\ \quad (3\ \text{d.p.})

  • Important: We have swapped role of s^2_X and s^2_Y, since s^2_Y > s^2_X. This way F > 1

2. Referencing Tables

  • Degrees of freedom are n - 1 = 10 - 1 = 9 \,, \qquad m - 1 = 13 - 1 = 12

  • Note: Since we have swapped role of s^2_X and s^2_Y, we have F = \frac{s^2_Y}{s_X^2} \sim F_{m-1,n-1} = F_{12,9}

  • We need to find the critical value F_{12,9}(0.025) in Table 4

Note: This is a two-sided test. Hence \alpha = 0.025, and not 0.05!

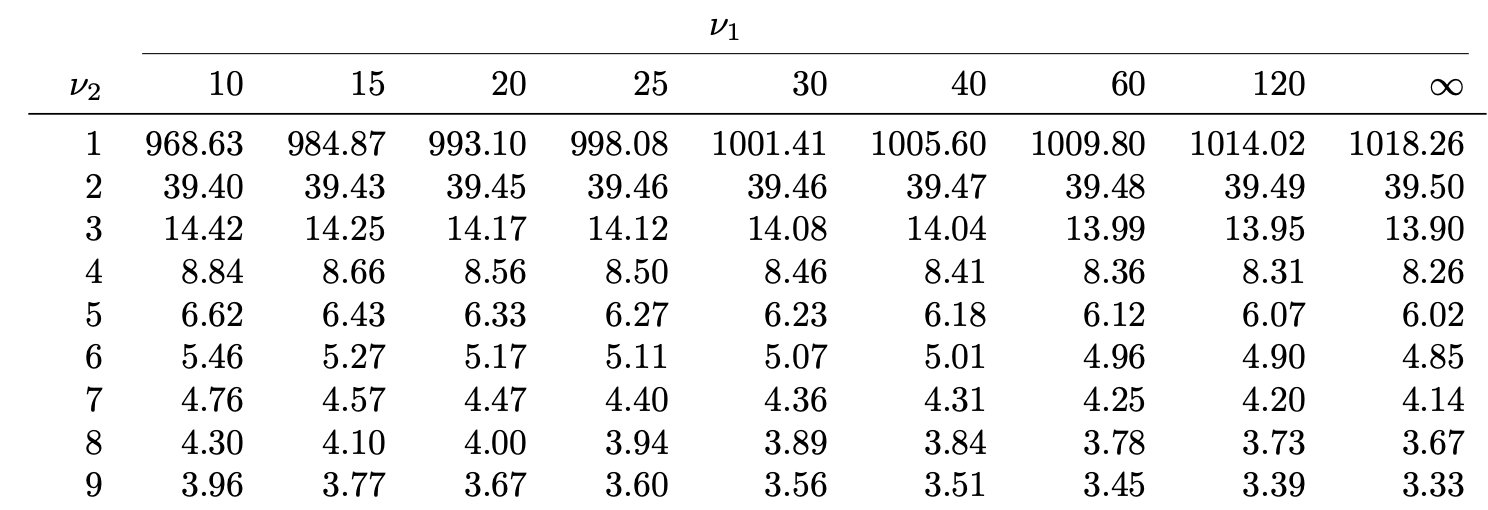

  • We note that F_{12, 9} is missing. Closest values are F_{10, 9} and F_{15, 9}

  • We estimate the desired critical value by averaging the two

F_{12, 9}(0.025) \approx \frac{F_{10, 9}(0.025) + F_{15, 9}(0.025)}{2} = \frac{3.96 + 3.77}{2} = 3.865

3. Interpretation

  • We have that F = 1.061 < 3.865 = F_{12, 9}(0.025)

  • Therefore the p-value satisfies p > 0.05

  • There is no evidence (p > 0.05) in favor of H_1. We have no reason to doubt that \sigma_X^2 = \sigma_Y^2

  • Conclusion:

    1. Wage levels for the two groups appear to be equally well spread out
    2. This is in line with previous graphical checks

The F-test in R

We present two implementations in R:

  1. Simple solution using the command var.test
  2. A first-principles construction closer to our earlier hand calculation

Simple solution: var.test

This is a two-sided F-test. The p-value is computed by

p = 2 P(F_{m-1, n-1} > F) \,, \qquad F = \frac{s_Y^2}{s_X^2}

# Enter Wages data in 2 vectors using function c()
mathematicians <- c(36, 40, 46, 54, 57, 58, 59, 60, 62, 63)
accountants <- c(37, 37, 42, 44, 46, 48, 54, 56, 59, 60, 60, 64, 64)


# Perform two-sided F-test using var.test
# Store result and print
ans <- var.test(accountants, mathematicians)
print(ans)
  • Note: accountants goes first because it has larger variance
  • Code can be downloaded here F_test.R


    F test to compare two variances

data:  accountants and mathematicians
F = 1.0607, num df = 12, denom df = 9, p-value = 0.9505
alternative hypothesis: true ratio of variances is not equal to 1
95 percent confidence interval:
 0.2742053 3.6443547
sample estimates:
ratio of variances
          1.060686

Comments:

  1. First line: R tells us that an F-test is performed

  2. Second line: Data for F-test is accountants and mathematicians

  3. The F-statistic computed is F = 1.0607

    • Note: This coincides with the one computed by hand (up to rounding error)


    F test to compare two variances

data:  accountants and mathematicians
F = 1.0607, num df = 12, denom df = 9, p-value = 0.9505
alternative hypothesis: true ratio of variances is not equal to 1
95 percent confidence interval:
 0.2742053 3.6443547
sample estimates:
ratio of variances
          1.060686

Comments:

  1. Numerator of F-statistic has 12 degrees of freedom
  2. Denominator of F-statistic has 9 degrees of freedom
  3. p-value is p = 0.9505


    F test to compare two variances

data:  accountants and mathematicians
F = 1.0607, num df = 12, denom df = 9, p-value = 0.9505
alternative hypothesis: true ratio of variances is not equal to 1
95 percent confidence interval:
 0.2742053 3.6443547
sample estimates:
ratio of variances
          1.060686

Comments:

  1. Fourth line: The alternative hypothesis is that ratio of variances is \, \neq 1
    • This translates to H_1 \colon \sigma_Y^2 \neq \sigma^2_X
    • Warning: This is not saying to reject H_0 – R is just stating H_1


    F test to compare two variances

data:  accountants and mathematicians
F = 1.0607, num df = 12, denom df = 9, p-value = 0.9505
alternative hypothesis: true ratio of variances is not equal to 1
95 percent confidence interval:
 0.2742053 3.6443547
sample estimates:
ratio of variances
          1.060686

Comments:

  1. Fifth line: R computes a 95 \% confidence interval for ratio \sigma_Y^2/\sigma_X^2 (\sigma_Y^2/\sigma_X^2 ) \in [0.2742053, 3.6443547]
    • Interpretation: If you repeat the experiment (on new data) over and over, the interval will contain \sigma_Y^2/\sigma_X^2 about 95\% of the times


    F test to compare two variances

data:  accountants and mathematicians
F = 1.0607, num df = 12, denom df = 9, p-value = 0.9505
alternative hypothesis: true ratio of variances is not equal to 1
95 percent confidence interval:
 0.2742053 3.6443547
sample estimates:
ratio of variances
          1.060686

Comments:

  1. Seventh line: R computes ratio of sample variances
    • We have that s_Y^2/s_X^2 = 1.060686
    • By definition, the above coincides with the F-statistic (up to rounding)


    F test to compare two variances

data:  accountants and mathematicians
F = 1.0607, num df = 12, denom df = 9, p-value = 0.9505
alternative hypothesis: true ratio of variances is not equal to 1
95 percent confidence interval:
 0.2742053 3.6443547
sample estimates:
ratio of variances
          1.060686

Conclusion: The p-value is p = 0.9505

  • Since p > 0.05, we do not reject H_0
  • Hence \sigma^2_X and \sigma^2_Y appear to be similar
  • Wage levels for the two groups appear to be equally well spread out

First principles solution

  • Start by entering data into R
# Enter Wages data in 2 vectors using function c()

mathematicians <- c(36, 40, 46, 54, 57, 58, 59, 60, 62, 63)
accountants <- c(37, 37, 42, 44, 46, 48, 54, 56, 59, 60, 60, 64, 64)

First principles solution

  • Check which population has higher variance
  • In our case accountants has higher variance
# Check which variance is higher

cat("\n Variance of accountants is", var(accountants))
cat("\n Variance of mathematicians is", var(mathematicians))

 Variance of accountants is 95.75641

 Variance of mathematicians is 90.27778

First principles solution

  • Compute sample sizes
# Calculate sample sizes

n <- length(mathematicians)
m <- length(accountants)

First principles solution

  • Compute F-statistic F = \frac{s_Y^2}{s_X^2}

  • Recall: Numerator has to have larger variance

  • In our case accountants is numerator

# Compute F-statistics
# Numerator is population with largest variance

F <- var(accountants) / var(mathematicians)

First principles solution

  • Compute the p-value p = 2P(F_{m-1, n-1} > F) = 2 - 2P(F_{m-1, n-1} \leq F) \,, \qquad F = \frac{s_Y^2}{s_X^2}
# Compute p-value
p_value <- 2 - 2 * pf(F, df1 = m - 1, df2 = n - 1)

# Print p-value
cat("\n The p-value for two-sided F-test is", p_value)


  • Note: The command pf(x, df1 = n, df2 = m) computes probability P(F_{n,m} \leq x)

First principles solution: Output


 Variance of accountants is 95.75641

 Variance of mathematicians is 90.27778

 The p-value for two-sided F-test is 0.9505368


  • Note: The p-value coincides with the one obtained with var.test
    • This is a way to cross check our code is right
  • Since p > 0.05, we do not reject H_0

Part 4:
The goodness-of-fit test

Scenario 1: Simple counts

Data: in the form of numerical counts

Test: difference between observed counts and predictions of theoretical model

Example: Blood counts

  • We conducted blood type testing on a sample of 6004 individuals, and the results are summarized below.

    A B AB O
    2162 738 228 2876

  • We want to compare the above data to the theoretical probability model

    A B AB O
    1/3 1/8 1/24 1/2

Scenario 2: Counts with multiple factors

Manager Won Drawn Lost
Moyes 27 9 15
Van Gaal 54 25 24
Mourinho 84 32 28
Solskjaer 91 37 40
Rangnick 11 10 8
ten Hag 61 12 28

Example: Relative performance of Manchester United managers

  • Each football manager has Win, Draw and Loss count

Scenario 2: Counts with multiple factors

Manager Won Drawn Lost
Moyes 27 9 15
Van Gaal 54 25 24
Mourinho 84 32 28
Solskjaer 91 37 40
Rangnick 11 10 8
ten Hag 61 12 28

Questions:

  • Is the number of Wins, Draws and Losses uniformly distributed?
  • Are there differences between the performances of each manager?

Plan

  1. In this Lecture:
    • We study Scenario 1 – Simple counts
    • Chi-squared goodness-of-fit test
  2. Next week:
    • We will study Scenario 2 – Counts with multiple factors
    • Chi-squared test of independence

Categorical Data

  • Finite number of possible categories or types
  • Observations can only belong to one category
  • O_i refers to observed count of category i
Type 1 Type 2 \ldots Type n
O_1 O_2 \ldots O_n
  • E_i refers to expected count of category i
Type 1 Type 2 \ldots Type n
E_1 E_2 \ldots E_n

Chi-squared goodness-of-fit test

Goal: Compare expected counts E_i with observed counts O_i

Null hypothesis: Expected counts match the Observed counts

H_0 \colon O_i = E_i \,, \qquad \forall \, i = 1, \ldots, n

Method: Look for evidence against the null hypothesis

  • Distance between observed counts and expected counts is large

  • For example, if (O_i - E_i)^2 \geq c for some chosen constant c

Chi-squared statistic

Definition
The chi-squared statistic is \chi^2 := \sum_{i=1}^n \frac{(O_i-E_i)^2}{E_i}

Remark:

  • \chi^2 represents the global distance between observed and expected counts

  • Indeed, we have that \chi^2 = 0 \qquad \iff \qquad O_i = E_i \,\,\,\, \text{ for all } \,\,\,\, i = 1 , \, \ldots , \, n

Tests using Chi-squared statistic

Null hypothesis: Expected counts match the Observed counts

H_0 \colon O_i = E_i \,, \qquad \forall \, i = 1, \ldots, n

Remarks:

  • If H_0 is to be believed, we expect small differences between O_i and E_i
    • Therefore \chi^2 will be small (and non-negative)
  • If H_0 is wrong, it will happen that some O_i are larger than the E_i
    • Therefore \chi^2 will be large (and non-negative)
  • The above imply that tests on \chi^2 should be one-sided (right-tailed)

The Multinomial distribution

Models the following experiment

  • The experiment consists of m independent trials
  • Each trial results in one of n distinct possible outcomes
  • The probability of the i-th outcome is p_i on every trial, with 0 \leq p_i \leq 1 \qquad \qquad \sum_{i=1}^n p_i = 1
  • X_i counts the number of times i-th outcome occurred in the m trials. It holds \sum_{i=1}^n X_i = m

Multinomial distribution

Schematic visualization


Outcome type 1 \ldots n Total
Counts X_1 \ldots X_n X_1 + \ldots + X_n = m
Probabilities p_1 \ldots p_n p_1 + \ldots + p_n = 1

The case n = 2

For n = 2, the multinomial reduces to a binomial:

  • Each trial has n = 2 possible outcomes
  • X_1 counts the number of successes
  • X_2 = m − X_1 counts the number of failures in m trials
  • Probability of success is p_1
  • Probability of failure is p_2 = 1 - p_1
Outcome types 1 2
Counts X_1 X_2 = m - X_1
Probabilities p_1 p_2 = 1 - p_1

Formal definition

Definition
Let m,n \in \mathbb{N} and p_1, \ldots, p_n numbers such that 0 \leq p_i \leq 1 \,, \qquad \quad \sum_{i=1}^n p_i = 1 The random vector \mathbf{X}= (X_1, \ldots, X_n) has multinomial distribution with m trials and cell probabilities p_1,\ldots,p_n if joint pmf is f (x_1, \ldots , x_n) = \frac{m!}{x_1 ! \cdot \ldots \cdot x_n !} \ p_1^{x_1} \cdot \ldots \cdot p_n^{x_n} \,, \qquad \forall \, x_i \in \mathbb{N}\, \, \text{ s.t. } \, \sum_{i=1}^n x_i = m We denote \mathbf{X}\sim \mathop{\mathrm{Mult}}(m,p_1,\ldots,p_n)

Properties of Multinomial distribution

Suppose that \mathbf{X}= (X_1, \ldots, X_n) \sim \mathop{\mathrm{Mult}}(m,p_1,\ldots,p_n)

  • If we are only interested in outcome i, the remaining outcomes are failures

  • This means X_i is binomial with m trials and success probability p_i

  • We write X_i \sim \mathop{\mathrm{Bin}}(m,p_i) and the pmf is f(x_i) = P(X = x_i) = \frac{m!}{x_i! \cdot (1-x_i)!} \, p_i^{x_i} (1-p_i)^{1-x_i} \qquad \forall \, x_i = 0 , \ldots , m

  • Since X_i \sim \mathop{\mathrm{Bin}}(m,p_i) it holds {\rm I\kern-.3em E}[X_i] = m p_i \qquad \qquad {\rm Var}[X_i] = m p_i (1-p_i)

Statistical Model: Multinomial Counts

  • O_i refers to observed count of category i

  • E_i refers to expected count of category i

  • We suppose that Type i is observed with probability p_i and 0 \leq p_i \leq 1 \,, \qquad \quad p_1 + \ldots + p_n = 1

  • Total number of observations is m

  • The counts are modelled by (O_1, \ldots, O_n) \sim \mathop{\mathrm{Mult}}(m, p_1, \ldots, p_n)

  • The expected counts are modelled by E_i := {\rm I\kern-.3em E}[ O_i ] = m p_i

The chi-squared statistic

Consider counts and expected counts (O_1, \ldots, O_n) \sim \mathop{\mathrm{Mult}}(m, p_1, \ldots, p_n) \qquad \qquad E_i := m p_i

Definition
The chi-squared statistic for multinomial counts is defined by \chi^2 = \sum_{i=1}^n \frac{(O_i-E_i)^2}{E_i} = \sum_{i=1}^n \frac{( O_i - m p_i )^2}{ m p_i }

Question: What is the distribution of \chi^2 \,?

Distribution of chi-squared statistic

Theorem
Suppose the counts (O_1, \ldots, O_n) \sim \mathop{\mathrm{Mult}}(m,p_1, \ldots, p_n). Then \chi^2 = \sum_{i=1}^n \frac{( O_i - m p_i )^2}{ m p_i } \ \stackrel{{\rm d}}{\longrightarrow} \ \chi_{n-1}^2 when sample size m \to \infty, where the convergence is in distribution

  • Hence, the distribution of \chi^2 is approximately \chi_{n-1}^2 when m is large

  • The above Theorem is due to Karl Pearson in his 1900 paper link

  • Proof is difficult. Seven different proofs are presented in this paper link

Heuristic proof of Theorem

  • Since O_i \sim \mathop{\mathrm{Bin}}(m, p_i), the Central Limit Theorem implies \frac{O_i - {\rm I\kern-.3em E}[O_i]}{ \sqrt{{\rm Var}[O_i] } } = \frac{O_i - m p_i }{ \sqrt{m p_i(1 - p_i) } } \ \stackrel{{\rm d}}{\longrightarrow} \ N(0,1) as m \to \infty

  • In particular, since (1-p_i) in constant, we have \frac{O_i - m p_i }{ \sqrt{m p_i } } \ \approx \ \frac{O_i - m p_i }{ \sqrt{m p_i(1 - p_i) } } \ \approx \ N(0,1)

Heuristic proof of Theorem

  • Squaring the previous expression, we get \frac{(O_i - m p_i)^2 }{ m p_i } \ \approx \ N(0,1)^2 = \chi_1^2

  • If the above random variables were pairwise independent, we would obtain \chi^2 = \sum_{i=1}^n \frac{(O_i - m p_i)^2 }{ m p_i } \ \approx \ \sum_{i=1}^n \chi_1^2 = \chi_n^2

  • However the O_i are not independent, because of the linear constraint O_1 + \ldots + O_n = m (total counts have to sum to m)

Heuristic proof of Theorem

  • A priori, there should be n degrees of freedom

  • However, the linear constraint reduces degrees of freedom by 1

    • because one can choose the first n-1 counts, and the last one is given by O_n = m - O_1 - \ldots - O_{n-1}

  • Thus, we have n-1 degrees of freedom, implying that \chi^2 = \sum_{i=1}^n \frac{(O_i - m p_i)^2 }{ m p_i } \ \approx \ \chi_{n-1}^2

This is not a proof! The actual proof is super technical

Quality of chi-squared approximation

  • Define expected counts E_i := m p_i

  • Consider approximation from Theorem: \chi^2 = \sum_{i=1}^n \frac{(O_i - E_i)^2 }{ E_i } \ \approx \ \chi_{n-1}^2

  • The approximation is:

    Good E_i \geq 5 \, \text{ for all } \, i = 1 , \ldots n
    Bad E_i < 5 \, for some \, i = 1 , \ldots n

  • How to compute the p-value: When approximation is

    • Good: Use \chi_{n-1}^2 approximation of \chi^2
    • Bad: Use Monte Carlo simulations (more on this later)

The chi-squared goodness-of-fit test

Setting:

  • Population consists of individuals of n different types
  • p_i is probability that an individuals selected at random is of type i

Problem: p_i is unknown and needs to be estimated

Hypothesis: As guess for p_1,\ldots,p_n, we take p_1^0, \ldots, p_n^0 such that 0 \leq p_i^0 \leq 1 \qquad \qquad \sum_{i=1}^n p_i^0 = 1

The chi-squared goodness-of-fit test

Formal Hypothesis: We test for equality of p_i to p_i^0 \begin{align*} & H_0 \colon p_i = p_i^0 \qquad \text{ for all } \, i = 1, \ldots, n \\ & H_1 \colon p_i \neq p_i^0 \qquad \text{ for at least one } \, i \end{align*}

Sample:

  • We draw m items from population
  • O_i denotes the number of items of type i drawn
  • According to our model, (O_1, \ldots, O_n) \sim \mathop{\mathrm{Mult}}(m,p_1, \ldots, p_n)

The chi-squared goodness-of-fit test

Data: Vector of counts (o_1,\ldots,o_n)

Schematically: We can represent probabilities and counts in a table


Type 1 \ldots n Total
Counts o_1 \ldots o_n m
Probabilities p_1 \ldots p_n 1

Procedure: 3 Steps

  1. Calculation:
    • Compute total counts and expected counts m = \sum_{i=1}^n o_i \qquad \quad E_i = m p_i^0
    • Compute the chi-squared statistic \chi^2 = \sum_{i=1}^n \frac{ (o_i - E_i)^2 }{E_i}

  1. Statistical Tables or R:
    • Check that E_i \geq 5 for all i = 1, \ldots, n
    • In this case \chi^2 \ \approx \ \chi_{n-1}^2
    • Find critical value \chi^2_{n-1}(0.05) in Table 2
    • Alternatively, compute p-value in R


  1. Interpretation: Reject H_0 when either p < 0.05 \qquad \text{ or } \qquad \chi^2 \in \,\,\text{Rejection Region}
Alternative Rejection Region p-value
\exists \, i \,\, s.t. \,\, p_i \neq p_i^0 \chi^2 > \chi^2_{n-1}(0.05) P(\chi_{n-1}^2 > \chi^2)

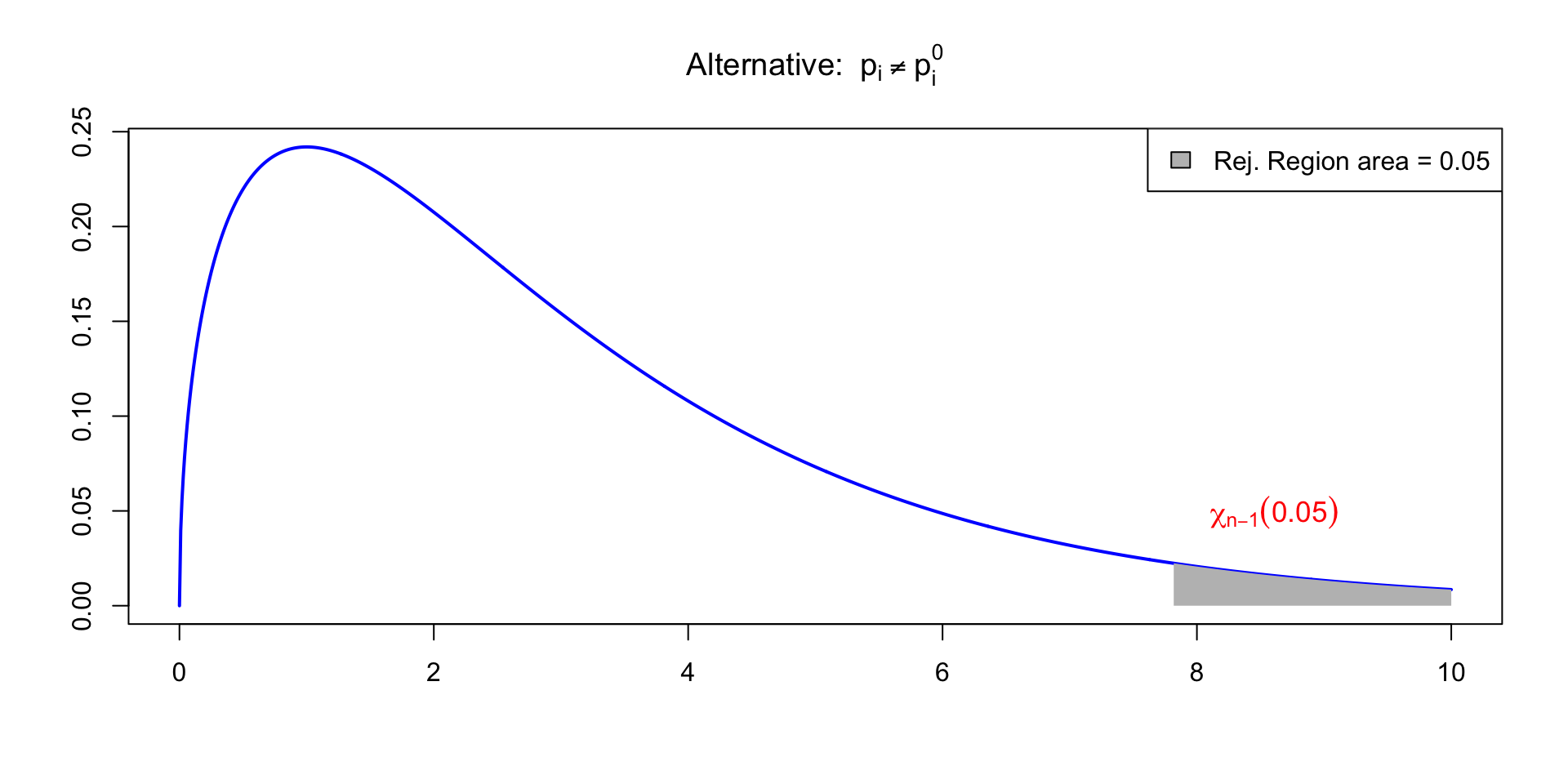

Reject H_0 if \chi^2 statistic falls in the Rejection Region (in gray)

The chi-squared goodness-of-fit test in R

  1. Store the counts o_1,\ldots, o_n in R vector
    • counts <- c(o1, ..., on)
  2. Store the null hypothesis probabilities p_1^0,\ldots, p_n^0 in R vector
    • null.p <- c(p1, ..., pn)
  3. Perform a goodness-of-fit test on counts with null.p
Alternative R command
\exists \, i \,\, s.t. \,\, p_i \neq p_i^0 chisq.test(counts, p = null.p)
  1. Read output: similar to two-sample t-test and F-test
    • The main quantity of interest is p-value

Comment 1

Default null probabilities

If null probabilities are not specified:

  • R assumes equal probability for each type

  • For example, assume that counts <- c(o1, ..., on)

  • Equal probability means that p_i^0 = \frac{1}{n} \,, \qquad \forall \, i = 1, \ldots, n

  • Test counts against equal probabilities with the command

    • chisq.test(counts)

Comment 2

Quality of chi-squared approximation

  • By default, R computes p-value via the \chi_{n-1}^2 approximation

  • R will warn you if expected counts are too low, and tell you to use Monte Carlo

  • To compute p-value via Monte Carlo simulation, use option

    • simulate.p.value = T

Part 5:
Worked Examples

Example 1: Blood counts

  • Suppose to have counts of blood type for some people

  • We also have theoretical probabilities that we want to test

    Blood type A B AB O
    Count 2162 738 228 2876
    Probability 1/3 1/8 1/24 1/2

  • Hence the null hypothesis probabilities are p_1^0 = \frac{1}{3} \qquad \quad p_2^0 = \frac{1}{8} \qquad \quad p_3^0 = \frac{1}{24} \qquad \quad p_4^0 = \frac{1}{2}

  • The alternative hypothesis is: \qquad H_1 \colon p_i \neq p_i^0 \,\, for at least one \, i

Goodness-of-fit test by hand

  1. Calculation:
    • Compute total counts m = \sum_{i=1}^n o_i = 2162 + 738 + 228 + 2876 = 6004
    • Compute expected counts \begin{align*} E_1 & = m p_1^0 = 6004 \times \frac{1}{3} = 2001.3 \\ E_2 & = m p_2^0 = 6004 \times \frac{1}{8} = 750.5 \\ E_3 & = m p_3^0 = 6004 \times \frac{1}{24} = 250.2 \\ E_4 & = m p_4^0 = 6004 \times \frac{1}{2} = 3002 \end{align*}

  1. Calculation:
    • Compute the chi-squared statistic \begin{align*} \chi^2 & = \sum_{i=1}^n \frac{ (o_i - E_i)^2 }{E_i} \\ & = \frac{ (2162 − 2001.3)^2 }{ 2001.3 } + \frac{ (738 − 750.5)^2 }{ 750.5 } \\ & \phantom{ = } + \frac{ (228 − 250.2)^2 }{ 250.2 } + \frac{ (2876 − 3002)^2 }{ 3002 } \\ & = 20.36 \end{align*}

  1. Statistical Tables:
    • Degrees of freedom are \, {\rm df} = n - 1 = 3
    • We have computed E_1 = 2001.3 \qquad E_2 = 750.5 \qquad E_3 = 250.2 \qquad E_4 = 3002
    • Hence E_i \geq 5 for all i = 1, \ldots, n
    • In this case \chi^2 \ \approx \ \chi_{3}^2
    • In chi-squared Table 2 we find critical value \chi^2_{3} (0.05) = 7.82

  1. Interpretation:
    • We have that \chi^2 = 20.36 > 7.82 = \chi_{3}^2 (0.05)
    • Therefore we reject H_0
    • This means we accept the alternative H_1 \colon p_i \neq p_i^0 \qquad \text{ for at least one } \, i

Conclusion: Observed counts suggest at least one of null probabilities p_i^0 is wrong

Goodness-of-fit test in R

  • We use R to perform a goodness-of-fit test on alternative H_1 \colon p_i \neq p_i^0 \qquad \text{ for at least one } \, i

  • The code can be downloaded here good_fit.R

# Enter counts and null hypothesis probabilities
counts <- c(2162, 738, 228, 2876)
null.p <- c(1/3, 1/8, 1/24, 1/2)

# Perform goodness-of-fit test
# Store the output and print

ans <- chisq.test(counts, p = null.p)
print(ans)

Output

  • Running the code in the previous slide we obtain

    Chi-squared test for given probabilities

data:  counts
X-squared = 20.359, df = 3, p-value = 0.000143


  • Chi-squared statistic is \, \chi^2 = 20.359

  • Degrees of freedom are \, {\rm df} = 3

  • p-value is p \approx 0

  • Therefore p < 0.05

  • We reject H_0

Conclusion: At least one of the theoretical probabilities appears to be wrong

Example 2: Fair dice

  • A dice with 6 faces is rolled 100 times
  • The counts observed are
Outcome 1 2 3 4 5 6
Count 13 17 9 17 18 26
  • Exercise: Is the dice fair?
    • Formulate appropriate goodness-of-fit test
    • Implement this test in R

Solution

  • The dice is fair if

P(\text{rolling }\, i) = \frac16 \,, \quad \forall \, i = 1, \ldots, 6

  • Therefore, we test the following hypothesis \begin{align*} & H_0 \colon p_i = \frac{1}{6} \qquad \text{ for all } \, i = 1, \ldots, 6 \\ & H_1 \colon p_i \neq \frac{1}{6} \qquad \text{ for at least one } \, i \end{align*}

  • The R code is given below
# Enter counts and null hypothesis probabilities
counts <- c(13, 17, 9, 17, 18, 26)
null_p. <- rep(1/6, 6)

# Perform goodness-of-fit test
chisq.test(counts, p = null.p)


  • Note that each type is equally likely

  • Therefore, we can achieve same result without specifying null probabilities

# Enter counts
counts <- c(13, 17, 9, 17, 18, 26)

# Perform goodness-of-fit test assuming equal probabilities
chisq.test(counts)

Solution

  • Both codes in the previous slide give the following output

    Chi-squared test for given probabilities

data:  counts
X-squared = 9.68, df = 5, p-value = 0.08483


  • Chi-squared statistic is \, \chi^2 = 9.68

  • Degrees of freedom are \, {\rm df} = 5

  • p-value is p \approx 0.08

  • Therefore p > 0.05

  • We cannot reject H_0

Conclusion: The dice appears to be fair

Example 3: Voting data

  • Assume there are two candidates: Republican and Democrat
  • Voter can choose one of these, or be undecided
  • 100 people are surveyed, and the results are
Republican Democrat Undecided
35 40 25

  • Hystorical data suggest that undecided voters are 30\% of population

  • Exercise: Is difference between Republican and Democratic significant?

    • Formulate appropriate goodness-of-fit test
    • Implement this test in R
    • You are not allowed to use chisq.test

Solution

  • Hystorical data suggest that undecided voters are 30\% of population. Hence p_3^0 = 0.3

  • Want to test if there is difference between Republican and Democrat

  • Hence null hypothesis is p_1^0 = p_2^0

  • Since probabilities must sum to 1, we get p_1^0 + p_2^0 + p_3^0 = 1 \quad \implies \quad p_1^0 = 0.35\,, \qquad p_2^0 = 0.35 \,, \qquad p_3^0 = 0.3

  • We test the hypothesis H_0 \colon p_i = p_i^0 \,\, \text{ for all } \, i = 1, \ldots, 3 \,, \qquad H_1 \colon p_i \neq p_i^0 \, \text{ for some }\, i

  • Perform goodness-of-fit test without using chisq.test

  • First, we enter the data

# Enter counts and null hypothesis probabilities
counts <- c(35, 40 , 25)
null.p <- c(0.35, 0.35, 0.3)
  • Compute the total number of counts m = o_1 + \ldots + o_n
# Compute total counts
m <- sum(counts)
  • Compute degrees of freedom \, {\rm df} = n - 1
# Compute degrees of freedom
degrees <- length(counts) - 1

  • Compute the expected counts E_i = m p_i^0
# Compute expected counts
exp.counts <- m * null.p
  • We now check that the expected counts satisfy E_i \geq 5
# Print expected counts with a message
cat("The expected counts are:", exp.counts)

# Check if the expected counts are larger than 5
if (all(exp.counts >= 5)) {
  cat("Expected counts are larger than 5.",
      "\nThe chi-squared approximation is valid!")
} else {
  cat("Warning, low expected counts.",
      "\nMonte Carlo simulation must be used.")
}
The expected counts are: 35 35 30
Expected counts are larger than 5.
The chi-squared approximation is valid!

  • Compute the chi-squared statistic \chi^2 = \sum_{i=1}^n \frac{( o_i - E_i )^2}{E_i}
# Compute chi-squared statistic
chi.squared <- sum( (counts - exp.counts)^2 / exp.counts )

  • We know that all the counts are larger than 5. Thus \chi^2 \approx \chi_{n-1}^2

  • We can therefore compute the p-valued with the formula p = P( \chi_{n-1}^2 > \chi^2 ) = 1 - P( \chi_{n-1}^2 \leq \chi^2 )

# Compute p-value
p_value <- 1 - pchisq(chi.squared, df = degrees)

# Print p-value
cat("The p-value is:", p_value)

The expected counts are: 35 35 30
Expected counts are larger than 5.
The chi-squared approximation is valid!
The p-value is: 0.4612526


  • Therefore p-value is p > 0.05

  • We do not reject H_0

Conclusion: No reason to believe that Republicans and Democrats are not tied

Homepage      License      Contact
