Statistical Models

Lecture 11

Lecture 11:
Stepwise Regression &
ANOVA

Outline of Lecture 11

  1. Multicollinearity
  2. Stepwise regression
  3. Stepwise regression and overfitting
  4. One-way ANOVA
  5. Factors in R
  6. Anova with aov
  7. Dummy variable regression models
  8. ANOVA as Regression
  9. ANCOVA

Part 1:
Multicollinearity

Multicollinearity

  • The general linear regression model is

Y_i = \beta_1 z_{i1} + \beta_2 z_{i2} + \ldots + \beta_p z_{ip} + \varepsilon_i

  • Consider Assumption 6
    • The design matrix Z is such that Z^T Z \, \text{ is invertible}
  • Multicollinearity: The violation of Assumption 6

\det(Z^T Z ) \, \approx \, 0 \, \quad \implies \quad Z^T Z \, \text{ is (almost) not invertible}

Causes of Multicollinearity

\text{Multicollinearity = multiple (linear) relationships between the Z-variables}

  • Multicollinearity arises when there is either
    • exact linear relationship amongst the Z-variables
    • approximate linear relationship amongst the Z-variables


Z-variables inter-related \quad \implies \quad hard to isolate individual influence on Y

Example of Multicollinear data

  • Exact collinearity for Z_1 and Z_2
    • because of exact linear relation Z_2 = 5 Z_1
  • Approximate collinearity for Z_1 and Z_3
    • because Z_3 is small perturbation of Z_2 Z_3 \approx Z_2
Z_1 Z_2 Z_3
10 50 52
15 75 75
18 90 97
24 120 129
30 150 152

Example of Multicollinear data

  • Approximate collinearity for Z_3 and Z_1 Z_3 \approx 5 Z_1

  • All instances qualify as multicollinearity

Z_1 Z_2 Z_3
10 50 52
15 75 75
18 90 97
24 120 129
30 150 152

Example of Multicollinear data

  • Since these relations are present, correlation is high
# Enter the data
Z1 <- c(10, 15, 18, 24, 30)
Z2 <- c(50, 75, 90, 120, 150)
Z3 <- c(52, 75, 97, 129, 152)

# Z1 and Z3 are approx correlated
cor(Z1, Z3)
[1] 0.9958817
# Z1 and Z2 are exactly correlated
cor(Z1, Z2)
[1] 1
# Z2 and Z3 are approx correlated
cor(Z2, Z3)
[1] 0.9958817
Z_1 Z_2 Z_3
10 50 52
15 75 75
18 90 97
24 120 129
30 150 152

Consequences of Multicollinearity

  • Therefore, multicollinearity means that
    • Predictors Z_j are (approximately) linearly dependent
    • E.g. one can be written as (approximate) linear combination of the others
  • Recall that the design matrix is

Z = (Z_1 | Z_2 | \ldots | Z_p) = \left( \begin{array}{cccc} z_{11} & z_{12} & \ldots & z_{1p} \\ z_{21} & z_{22} & \ldots & z_{2p} \\ \ldots & \ldots & \ldots & \ldots \\ z_{n1} & z_{n2} & \ldots & z_{np} \\ \end{array} \right)

  • Z has p columns. If at least one pair Z_i and Z_j is collinear (linearly dependent), then

{\rm rank} (Z) < p

  • Basic linear algebra tells us that

{\rm rank} \left( Z^T Z \right) = {\rm rank} \left( Z \right)

  • Therefore, if we have collinearity

{\rm rank} \left( Z^T Z \right) < p \qquad \implies \qquad Z^T Z \,\, \text{ is NOT invertible}

  • In this case the least-squares estimator is not well defined

\hat{\beta} = (Z^T Z)^{-1} Z^T y

Multicollinearity is a big problem!

Example of non-invertible Z^T Z

  • Z_1, Z_2, Z_3 as before

  • Exact Multicollinearity since Z_2 = 5 Z_1

  • Thus Z^T Z is not invertible

  • Let us check with R

Z_1 Z_2 Z_3
10 50 52
15 75 75
18 90 97
24 120 129
30 150 152

Example of non-invertible Z^T Z

# Enter the data
Z1 <- c(10, 15, 18, 24, 30)
Z2 <- c(50, 75, 90, 120, 150)
Z3 <- c(52, 75, 97, 129, 152)

# Assemble design matrix
Z <- matrix(c(Z1, Z2, Z3), ncol = 3)

# Compute determinant of Z^T Z
det ( t(Z) %*% Z )
[1] -3.531172e-07
Z_1 Z_2 Z_3
10 50 52
15 75 75
18 90 97
24 120 129
30 150 152

  • R computed that \,\, {\rm det} ( Z^T Z) = -3.531172 \times 10^{-7}

  • Therefore the determinant of Z^T Z is almost 0

Z^T Z \text{ is not invertible!}

  • If we try to invert Z^T Z in R we get an error
# Compute inverse of Z^T Z
solve ( t(Z) %*% Z )

Error in solve.default(t(Z) %*% Z) :
  system is computationally singular: reciprocal condition number = 8.25801e-19

Approximate Multicollinearity

  • In practice, one almost never has exact Multicollinearity

  • If Multicollinearity is present, it is likely to be Approximate Multicollinearity

  • In case of approximate Multicollinearity, it holds that

    • The matrix Z^T Z can be inverted
    • The estimator \hat \beta can be computed \hat \beta = (Z^T Z)^{-1} Z^T y
    • However the inversion is numerically instable
  • Approximate Multicollinearity is still a big problem!

    • Due to numerical instability, we may not be able to trust the estimator \hat \beta

Effects of numerical instability on t-tests

  • Approximate Multicollinearity implies that
    • Z^T Z is invertible
    • The inversion is numerically instable
  • Numerically instable inversion means that

\text{Small perturbations in } Z \quad \implies \quad \text{large variations in } (Z^T Z)^{-1}

  • Denote by \xi_{ij} the entries of (Z^T Z)^{-1}

\text{Small perturbations in } Z \quad \implies \quad \text{large variations in } \xi_{ij}

  • In particular, this might lead to larger than usual values \xi_{ij}

  • Recall formula of estimated standard error for \beta_j

\mathop{\mathrm{e.s.e.}}(\beta_j) = \xi_{jj}^{1/2} \, S \,, \qquad \quad S^2 = \frac{\mathop{\mathrm{RSS}}}{n-p}

  • The numbers \xi_{jj} are the diagonal entries of (Z^T Z)^{-1}

\begin{align*} \text{Multicollinearity} & \quad \implies \quad \text{Numerical instability} \\[5pts] & \quad \implies \quad \text{potentially larger } \xi_{jj} \\[5pts] & \quad \implies \quad \text{potentially larger } \mathop{\mathrm{e.s.e.}}(\beta_j) \end{align*}

  • To test the null hypothesis that \beta_j = 0, we use t-statistic

t = \frac{\beta_j}{ \mathop{\mathrm{e.s.e.}}(\beta_j) }

  • But Multicollinearity increases the \mathop{\mathrm{e.s.e.}}(\beta_j)

  • Therefore, the t-statistic reduces in size:

    • t-statistic will be smaller than it should
    • The p-values will be large p > 0.05

Multicollinearity \implies It becomes harder to reject incorrect hypotheses!

Example of numerical instability

  • Z_1, Z_2, Z_3 as before

  • We know we have exact Multicollinearity, since Z_2 = 5 Z_1

  • Therefore Z^T Z is not invertible

Z_1 Z_2 Z_3
10 50 52
15 75 75
18 90 97
24 120 129
30 150 152

Example of numerical instability

  • To get rid of Multicollinearity we can add a small perturbation to Z_1 Z_1 \,\, \leadsto \,\, Z_1 + 0.01

  • The new dataset Z_1 + 0.01, Z_2, Z_3 is

    • Not anymore exactly Multicollinear
    • Still approximately Multicollinear
Z_1 Z_2 Z_3
10 50 52
15 75 75
18 90 97
24 120 129
30 150 152

Example of numerical instability

  • Define the new design matrix Z = (Z_1 + 0.01 | Z_2 | Z_3)

  • Data is approximately Multicollinear

  • Therefore the inverse of Z^T Z exists

  • Let us compute this inverse in R

Z_1 + 0.01 Z_2 Z_3
10.01 50 52
15.01 75 75
18.01 90 97
24.01 120 129
30.01 150 152

  • Let us compute the inverse of

Z = (Z_1 + 0.01 | Z_2 | Z_3)

# Consider perturbation Z1 + 0.01
PZ1 <- Z1 + 0.01

# Assemble perturbed design matrix
Z <- matrix(c(PZ1, Z2, Z3), ncol = 3)

# Compute the inverse of Z^T Z
solve ( t(Z) %*% Z )
             [,1]          [,2]       [,3]
[1,] 17786.804216 -3556.4700048 -2.4186075
[2,] -3556.470005   711.1358432  0.4644159
[3,]    -2.418608     0.4644159  0.0187805


  • In particular, note that the first coefficient is \,\, \xi_{11} \, \approx \, 17786

  • Let us change the perturbation slightly:

\text{ consider } \, Z_1 + 0.02 \, \text{ instead of } \, Z_1 + 0.01

  • Invert the new design matrix \,\, Z = (Z_1 + 0.02 | Z_2 | Z_3)
# Consider perturbation Z1 + 0.02
PZ1 <- Z1 + 0.02

# Assemble perturbed design matrix
Z <- matrix(c(PZ1, Z2, Z3), ncol = 3)

# Compute the inverse of Z^T Z
solve ( t(Z) %*% Z )
            [,1]         [,2]       [,3]
[1,] 4446.701047 -888.8947902 -1.2093038
[2,] -888.894790  177.7098841  0.2225551
[3,]   -1.209304    0.2225551  0.0187805


  • In particular, note that the first coefficient is \,\, \xi_{11} \, \approx \, 4446

  • Summary:
    • If we perturb the vector Z_1 by 0.01, the first coefficient of (Z^T Z)^{-1} is \xi_{11} \, \approx \, 17786
    • If we perturb the vector Z_1 by 0.02, the first coefficient of (Z^T Z)^{-1} is \xi_{11} \, \approx \, 4446


  • The average entry in Z_1 is
mean(Z1)
[1] 19.4

  • Therefore, the average percentage change in the data Z_1 is

\begin{align*} \text{Percentage Change} & = \left( \frac{\text{New Value} - \text{Old Value}}{\text{Old Value}} \right) \times 100\% \\[15pts] & = \left( \frac{(19.4 + 0.02) - (19.4 + 0.01)}{19.4 + 0.01} \right) \times 100 \% \ \approx \ 0.05 \% \end{align*}

  • The percentage change in the coefficients \xi_{11} is

\text{Percentage Change in } \, \xi_{11} = \frac{4446 - 17786}{17786} \times 100 \% \ \approx \ −75 \%

  • Conclusion: We have shown that

\text{perturbation of } \, 0.05 \% \, \text{ in the data } \quad \implies \quad \text{change of } \, - 75 \% \, \text{ in } \, \xi_{11}


  • This is precisely numerical instability

\text{Small perturbations in } Z \quad \implies \quad \text{large variations in } (Z^T Z)^{-1}

Causes of Multicollinearity

  • Multicollinearity is a problem
    • When are we likely to encounter it?
  • Possible sources of Multicollinearity are
  1. The data collection method employed
    • Sampling over a limited range of values in the population
  2. Constraints on the model or population
    • E.g. variables such as income and house size may be interrelated
  3. Model Specification
    • E.g. adding polynomial terms to a model when range of X-variables is small

  1. An over-determined model
    • Having too many X variables compared to the number of observations
  2. Common trends
    • E.g. variables such as consumption, income, wealth, etc may be correlated due to a dependence upon general economic trends and cycles

Often can know in advance when you might experience Multicollinearity

How to detect Multicollinearity

Most important sign

Important
High R^2 values coupled with small t-statistics

  • This is a big sign of potential Multicollinearity

  • Why is this contradictory?

    • High R^2 suggests model is good and explains a lot of the variation in Y
    • But if individual t-statistics are small, this suggests \beta_j = 0
    • Hence individual X-variables do not affect Y

Other signs of Multicollinearity

  1. Numerical instabilities:
    • Parameter estimates \hat \beta_j become very sensitive to small changes in the data
    • The \mathop{\mathrm{e.s.e.}} become very sensitive to small changes in the data
    • Parameter estimates \hat \beta_j take the wrong sign or otherwise look strange
  2. High correlation between predictors
    • Correlation can be computed in R
  3. Klein’s rule of thumb: Multicollinearity will be serious problem if:
    • The R^2 obtained from regressing predictor variables X is greater than the overall R^2 obtained by regressing Y against all the X variables

What to do in case of Multicollinearity?

Do nothing

  • Multicollinearity is essentially a data-deficiency problem

  • Sometimes we have no control over the dataset available

  • Important point:

    • Doing nothing should only be an option in quantitative social sciences (e.g. finance, economics) where data is often difficult to collect
    • For scientific experiments (e.g. physics, chemistry) one should strive to collect good data

What to do in case of Multicollinearity?

Acquire new/more data

  • Multicollinearity is a sample feature

  • Possible that another sample involving the same variables will have less Multicollinearity

  • Acquiring more data might reduce severity of Multicollinearity

  • More data can be collected by either

    • increasing the sample size or
    • including additional variables

What to do in case of Multicollinearity?

Use prior information about some parameters

  • To do this properly would require advanced Bayesian statistical methods

  • This is beyond the scope of this module

What to do in case of Multicollinearity?

Rethinking the model

  • Sometimes a model chosen for empirical analysis is not carefully thought out
    • Some important variables may be omitted
    • The functional form of the model may have been incorrectly chosen
  • Sometimes using more advanced statistical techniques may be required
    • Factor Analysis
    • Principal Components Analysis
    • Ridge Regression
  • Above techniques are outside the scope of this module

What to do in case of Multicollinearity?

Transformation of variables

  • Multicollinearity may be reduced by transforming variables

  • This may be possible in various different ways

    • E.g. for time-series data one might consider forming a new model by taking first differences
  • Further reading in Chapter 10 of [1]

What to do in case of Multicollinearity?

Dropping variables

  • Simplest approach to tackle Multicollinearity is to drop one or more of the collinear variables

  • Goal: Find the best combination of X variables which reduces Multicollinearity

  • We present 2 alternatives

    1. Dropping variables by hand
    2. Dropping variables using Stepwise regression (next Part)

Example: Expenditure Vs Income, Wealth

  • Explain expenditure Y in terms of
    • income X_2
    • wealth X_3
  • It is intuitively clear that income and wealth are highly correlated

To detect Multicollinearity, look out for

  • High R^2 value
  • coupled with low t-values
Expenditure Y Income X_2 Wealth X_3
70 80 810
65 100 1009
90 120 1273
95 140 1425
110 160 1633
115 180 1876
120 200 2052
140 220 2201
155 240 2435
150 260 2686

Fit the regression model in R

# Enter data
y <- c(70, 65, 90, 95, 110, 115, 120, 140, 155, 150)
x2 <- c(80, 100, 120, 140, 160, 180, 200, 220, 240, 260)
x3 <- c(810, 1009, 1273, 1425, 1633, 1876, 2052, 2201, 2435, 2686)

# Fit model
model <- lm(y ~ x2 + x3)

# We want to display only part of summary
# First capture the output into a vector
temp <- capture.output(summary(model))

# Then print only the lines of interest
cat(paste(temp[9:20], collapse = "\n"))

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) 24.77473    6.75250   3.669  0.00798 **
x2           0.94154    0.82290   1.144  0.29016
x3          -0.04243    0.08066  -0.526  0.61509
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 6.808 on 7 degrees of freedom
Multiple R-squared:  0.9635,    Adjusted R-squared:  0.9531
F-statistic:  92.4 on 2 and 7 DF,  p-value: 9.286e-06


Three basic statistics

  • R^2 coefficient
  • t-statistics and related p-values
  • F-statistic and related p-value

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) 24.77473    6.75250   3.669  0.00798 **
x2           0.94154    0.82290   1.144  0.29016
x3          -0.04243    0.08066  -0.526  0.61509
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 6.808 on 7 degrees of freedom
Multiple R-squared:  0.9635,    Adjusted R-squared:  0.9531
F-statistic:  92.4 on 2 and 7 DF,  p-value: 9.286e-06


  1. R^2 = 0.9635
    • Model explains a substantial amount of the variation (96.35%) in the data

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) 24.77473    6.75250   3.669  0.00798 **
x2           0.94154    0.82290   1.144  0.29016
x3          -0.04243    0.08066  -0.526  0.61509
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 6.808 on 7 degrees of freedom
Multiple R-squared:  0.9635,    Adjusted R-squared:  0.9531
F-statistic:  92.4 on 2 and 7 DF,  p-value: 9.286e-06


  1. F-statistic is F = 92.4
    • Corresponding p-value is p = 9.286 \times 10^{-6} <0.05
    • Evidence that at least one between Income and Wealth affect Expenditure

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) 24.77473    6.75250   3.669  0.00798 **
x2           0.94154    0.82290   1.144  0.29016
x3          -0.04243    0.08066  -0.526  0.61509
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 6.808 on 7 degrees of freedom
Multiple R-squared:  0.9635,    Adjusted R-squared:  0.9531
F-statistic:  92.4 on 2 and 7 DF,  p-value: 9.286e-06


  1. t-statistics:
    • t-statistics for Income is t = 1.144; Corresponding p-value is p = 0.29016
    • t-statistic for Wealth is t = -0.526; Corresponding p-value is p = 0.61509
    • Both p-values are p > 0.05 \implies regression parameters are \beta_2 = \beta_3 = 0
    • Therefore, neither Income nor Wealth affect Expenditure

The output looks strange

Main red flag for Multicollinearity:

  • High R^2 value coupled with low t-values (corresponding to high p-values)

There are many contradictions:

  1. High R^2 value suggests model is really good

  2. However, low t-values imply neither Income nor Wealth affect Expenditure

  3. F-statistic is high \implies at least one between Income or Wealth affect Expenditure

  4. The Wealth estimator has the wrong sign (\hat \beta_3 < 0). This makes no sense:

    • it is likely that Expenditure will increase as Wealth increases
    • therefore, we would expect \, \hat \beta_3 > 0

Multicollinearity is definitely present!

Further confirmation

Method 1: Computing the correlation:

  • Compute correlation of X_2 and X_3
cor(x2, x3)
[1] 0.9989624
  • Correlation is almost 1: Variables X_2 and X_3 are very highly correlated

This once again confirms Multicollinearity is present


Conclusion: The variables Income and Wealth are highly correlated

  • Impossible to isolate individual impact of either Income or Wealth upon Expenditure

Method 2: Klein’s rule of thumb: Multicollinearity will be a serious problem if:

  • The R^2 obtained from regressing predictor variables X is greater than the overall R^2 obtained by regressing Y against all the X variables

In the Expenditure vs Income and Wealth dataset we have:

  • Regressing Y against X_2 and X_3 gives R^2=0.9635

  • Regressing X_2 against X_3 gives R^2 = 0.9979

# Fit model
klein <- lm(x2 ~ x3)

# Read R^2 in summary
summary(klein)

Klein’s rule of thumb suggests that Multicollinearity will be a serious problem

Addressing multicollinearity

  • The variables Income and Wealth are highly correlated

  • Intuitively, we expect both Income and Wealth to affect Expenditure

  • Solution can be to drop either Income or Wealth variables

    • We can then fit 2 separate models
# Fit expenditure as function of income
model.1 <- lm(y ~ x2)

# Fit expenditure as function of wealth
model.2 <- lm(y ~ x3)

summary(model.1)
summary(model.2)

Expenditure Vs Income

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) 24.45455    6.41382   3.813  0.00514 **
x2           0.50909    0.03574  14.243 5.75e-07 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 6.493 on 8 degrees of freedom
Multiple R-squared:  0.9621,    Adjusted R-squared:  0.9573
F-statistic: 202.9 on 1 and 8 DF,  p-value: 5.753e-07


  • R^ 2 = 0.9621 which is quite high
  • p-value for \beta_2 is p = 9.8 \times 10^{-7} < 0.05 \quad \implies \quad Income variable is significant
  • Estimate is \hat \beta_2 = 0.50909 > 0

Strong evidence that Expenditure increases as Income increases

Expenditure Vs Wealth

Coefficients:
             Estimate Std. Error t value Pr(>|t|)
(Intercept) 24.411045   6.874097   3.551   0.0075 **
x3           0.049764   0.003744  13.292  9.8e-07 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 6.938 on 8 degrees of freedom
Multiple R-squared:  0.9567,    Adjusted R-squared:  0.9513
F-statistic: 176.7 on 1 and 8 DF,  p-value: 9.802e-07


  • R^ 2 = 0.9567 which is quite high
  • p-value for \beta_2 is p = 9.8 \times 10^{-7} < 0.05 \quad \implies \quad Wealth variable is significant
  • Estimate is \hat \beta_2 = 0.049764 > 0

Strong evidence that Expenditure increases as Wealth increases

Example: Conclusion

First, we fitted the model

\text{Expenditure} = \beta_1 + \beta_2 \times \text{Wealth} + \beta_3 \times \text{Income} + \varepsilon

  • We saw that the model performs poorly due to multicollinearity
    • High R^2 coupled with non-significant variables Income and Wealth
    • Income and Wealth are highly correlated
  • To address multicollinearity, we dropped variables and fitted simpler models
    • Expenditure vs Income
    • Expenditure vs Wealth
  • Both models perform really well
    • Expenditure increases as either Income or Wealth increase
  • Multicollinearity effects disappeared after dropping either variable!

Part 2:
Stepwise regression

Stepwise regression

  • Method for comparing regression models

  • Involves iterative selection of predictor variables X to use in the model

  • It can be achieved through

    • Forward selection
    • Backward selection
    • Stepwise selection: Combination of Forward and Backward selection

Stepwise regression methods

  1. Forward Selection: Start with the null model with only intercept Y = \beta_1 + \varepsilon
    • Add each variable X_j incrementally, testing for significance
    • Stop when no more variables are statistically significant

Note: Significance criterion for X_j is in terms of AIC

  • AIC is a measure of how well a model fits the data
  • AIC is an alternative to the coefficient of determination R^2
  • We will give details about AIC later

  1. Backward Selection: Start with the full model Y = \beta_1 + \beta_2 X_{2}+ \ldots+\beta_p X_{p}+ \varepsilon
    • Delete X_j variables which are not significant
    • Stop when all the remaining variables are significant


  1. Stepwise Selection: Start with the null model Y = \beta_1 + \varepsilon
    • Add each variable X_j incrementally, testing for significance
    • Each time a new variable X_j is added, perform a Backward Selection step
    • Stop when all the remaining variables are significant

Note: Stepwise Selection ensures that at each step all the variables are significant

Stepwise regression in R

  • Suppose given
    • a data vector \, \texttt{y}
    • predictors data \, \texttt{x2}, \texttt{x3}, \ldots, \texttt{xp}
  • Begin by fitting the null and full regression models
# Fit the null model
null.model <- lm(y ~ 1)

# Fit the full model
full.model <- lm(y ~ x2 + x3 + ... + xp)
  • Forward selection or Stepwise selection: Start with null model

  • Backward selection: Start with full model

# Stepwise selection
best.model <- step(null.model,
                   direction = "both",
                   scope = formula(full.model))


# Forward selection
best.model <- step(null.model,
                   direction = "forward",
                   scope = formula(full.model))


# Backward selection
best.model <- step(full.model,
                   direction = "backward")
  • The model selected by Stepwise regression is saved in
    • \texttt{best.model}
  • To find out which model was selected, print the summary and read first 2 lines
summary(best.model)

Example: Longley dataset

     GNP.deflator     GNP Unemployed Armed.Forces Population Year Employed
1947         83.0 234.289      235.6        159.0    107.608 1947   60.323
1948         88.5 259.426      232.5        145.6    108.632 1948   61.122
1949         88.2 258.054      368.2        161.6    109.773 1949   60.171


Goal: Explain the number of Employed people Y in the US in terms of

  • X_2 GNP deflator to adjust GNP for inflation
  • X_3 GNP Gross National Product
  • X_4 number of Unemployed
  • X_5 number of people in the Armed Forces
  • X_6 non-institutionalised Population \geq age 14 (not in care of insitutions)
  • X_7 Years from 1947 to 1962

Reading in the data

  • Code for this example is available here longley_stepwise.R

  • Longley dataset available here longley.txt

  • Download the data file and place it in current working directory

# Read data file
longley <- read.table(file = "longley.txt", header = TRUE)

# Store columns in vectors
x2 <- longley[ , 1]        # GNP Deflator
x3 <- longley[ , 2]        # GNP
x4 <- longley[ , 3]        # Unemployed
x5 <- longley[ , 4]        # Armed Forces
x6 <- longley[ , 5]        # Population
x7 <- longley[ , 6]        # Year
y <- longley[ , 7]         # Employed

Fitting the Full Model

Fit the multiple regression model, including all predictors

Y = \beta_1 + \beta_2 \, X_2 + \beta_3 \, X_3 + \beta_4 \, X_4 + \beta_5 \, X_5 + \beta_6 \, X_6 + \beta_7 \, X_7 + \varepsilon


# Fit multiple regression model
model <- lm(y ~ x2 + x3 + x4 + x5 + x6 + x7)

# Print summary
summary(model)

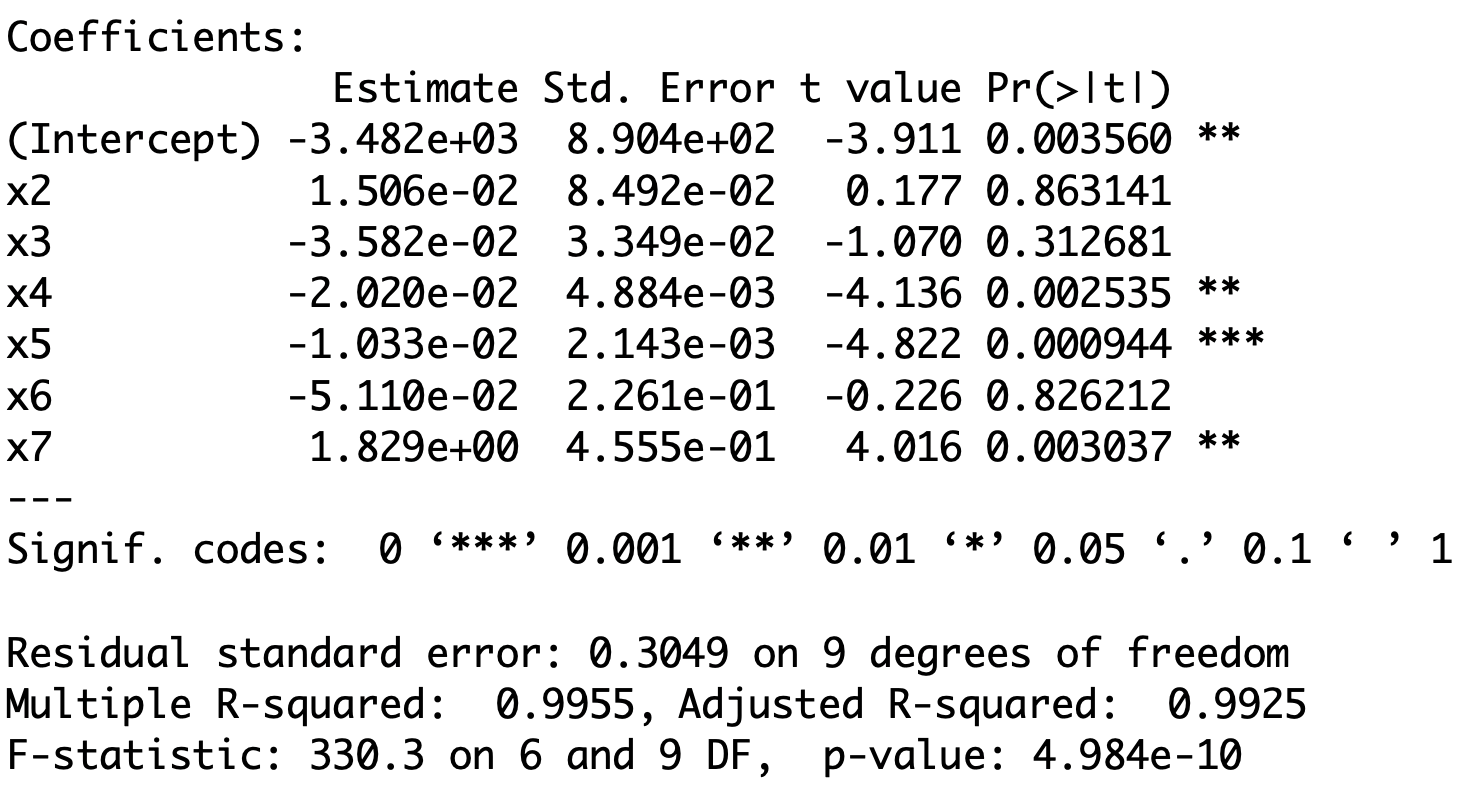

  • Fitting the full model gives:
    • Extremely high R^2 value
    • Low t-values (and high p-values) for X_2, X_3 and X_6
  • These are signs that we might have a problem with Multicollinearity

  • To further confirm Multicollinearity, we can look at the correlation matrix
    • We can use function \, \texttt{cor} directly on first 6 columns of data-frame \,\texttt{longley}
    • We look only at correlations larger than 0.9
# Return correlations larger than 0.9
cor(longley[ , 1:6]) > 0.9
             GNP.deflator   GNP Unemployed Armed.Forces Population  Year
GNP.deflator         TRUE  TRUE      FALSE        FALSE       TRUE  TRUE
GNP                  TRUE  TRUE      FALSE        FALSE       TRUE  TRUE
Unemployed          FALSE FALSE       TRUE        FALSE      FALSE FALSE
Armed.Forces        FALSE FALSE      FALSE         TRUE      FALSE FALSE
Population           TRUE  TRUE      FALSE        FALSE       TRUE  TRUE
Year                 TRUE  TRUE      FALSE        FALSE       TRUE  TRUE


  • We see that the following pairs are highly correlated (correlation \, > 0.9) (X_2, X_3)\,, \quad (X_2, X_6)\,, \quad (X_2, X_7)\,, \quad (X_3, X_6)\,, \quad (X_3, X_7)\,, \quad (X_6, X_7)

Applying Stepwise regression

  • Goal: Want to find best variables which, at the same time
    • Explain Employment variable Y
    • Reduce Multicollinearity
  • Method: We use Stepwise regression


  • Start by by fitting the null and full regression models
# Fit the null model
null.model <- lm(y ~ 1)

# Fit the full model
full.model <- lm(y ~ x2 + x3 + x4 + x5 + x6 + x7)

  • Perform Stepwise regression by
    • Forward selection
    • Backward selection
    • Stepwise selection
# Forward selection
best.model.1 <- step(null.model,
                    direction = "forward",
                    scope = formula(full.model))

# Backward selection
best.model.2 <- step(full.model,
                    direction = "backward")

# Stepwise selection
best.model.3 <- step(null.model,
                    direction = "both",
                    scope = formula(full.model))

  • Models obtained by Stepwise regression are stored in
    • \texttt{best.model.1}, \,\, \texttt{best.model.3}, \,\,\texttt{best.model.3}


  • Print the summary for each model obtained
# Print summary of each model
summary(best.model.x)


  • Output: The 3 methods all yield the same model
Call:
lm(formula = y ~ x3 + x4 + x5 + x7)

Interpretation

  • All three Stepwise regression methods agree:
    • X_3, X_4, X_5, X_7 are selected
    • X_2, X_6 are excluded
  • Recall: When fitting the full model, non-significant variables are X_2, X_3, X_6
    • Stepwise regression drops X_2, X_6, and keeps X_3
  • Explanation: Multicollinearity between X-variables means there is redundancy
    • X_2 and X_6 are not needed in the model
  • This means that the number Employed just depends on
    • X_3 GNP
    • X_4 Number of Unemployed people
    • X_5 Number of people in the Armed Forces
    • X_7 Time in Years

Re-fitting the model without X_2 and X_6

best.model <- lm(y ~ x3 + x4 + x5 + x7)
summary(best.model)
Coefficients:
              Estimate Std. Error t value Pr(>|t|)
(Intercept) -3.599e+03  7.406e+02  -4.859 0.000503 ***
x3          -4.019e-02  1.647e-02  -2.440 0.032833 *
x4          -2.088e-02  2.900e-03  -7.202 1.75e-05 ***
x5          -1.015e-02  1.837e-03  -5.522 0.000180 ***
x7           1.887e+00  3.828e-01   4.931 0.000449 ***
---
Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Residual standard error: 0.2794 on 11 degrees of freedom
Multiple R-squared:  0.9954,    Adjusted R-squared:  0.9937
F-statistic: 589.8 on 4 and 11 DF,  p-value: 9.5e-13
  • Coefficient of determination is still very high: R^2 = 0.9954
  • All the variables X_3, X_4,X_5,X_7 are significant (p-values <0.05)
  • This means Multicollinearity effects have disappeared

Re-fitting the model without X_2 and X_6

best.model <- lm(y ~ x3 + x4 + x5 + x7)
summary(best.model)
Coefficients:
              Estimate Std. Error t value Pr(>|t|)
(Intercept) -3.599e+03  7.406e+02  -4.859 0.000503 ***
x3          -4.019e-02  1.647e-02  -2.440 0.032833 *
x4          -2.088e-02  2.900e-03  -7.202 1.75e-05 ***
x5          -1.015e-02  1.837e-03  -5.522 0.000180 ***
x7           1.887e+00  3.828e-01   4.931 0.000449 ***
---
Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Residual standard error: 0.2794 on 11 degrees of freedom
Multiple R-squared:  0.9954,    Adjusted R-squared:  0.9937
F-statistic: 589.8 on 4 and 11 DF,  p-value: 9.5e-13
  • The coefficient of X_3 is negative and statistically significant
    • As GNP increases the number Employed decreases
  • The coefficient of X_4 is negative and statistically significant
    • As the number of Unemployed increases the number Employed decreases

Re-fitting the model without X_2 and X_6

best.model <- lm(y ~ x3 + x4 + x5 + x7)
summary(best.model)
Coefficients:
              Estimate Std. Error t value Pr(>|t|)
(Intercept) -3.599e+03  7.406e+02  -4.859 0.000503 ***
x3          -4.019e-02  1.647e-02  -2.440 0.032833 *
x4          -2.088e-02  2.900e-03  -7.202 1.75e-05 ***
x5          -1.015e-02  1.837e-03  -5.522 0.000180 ***
x7           1.887e+00  3.828e-01   4.931 0.000449 ***
---
Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Residual standard error: 0.2794 on 11 degrees of freedom
Multiple R-squared:  0.9954,    Adjusted R-squared:  0.9937
F-statistic: 589.8 on 4 and 11 DF,  p-value: 9.5e-13
  • The coefficient of X_5 is negative and statistically significant
    • As the number of Armed Forces increases the number Employed decreases
  • The coefficient of X_7 is positive and statistically significant
    • the number Employed is generally increasing over Time

Re-fitting the model without X_2 and X_6

best.model <- lm(y ~ x3 + x4 + x5 + x7)
summary(best.model)
Coefficients:
              Estimate Std. Error t value Pr(>|t|)
(Intercept) -3.599e+03  7.406e+02  -4.859 0.000503 ***
x3          -4.019e-02  1.647e-02  -2.440 0.032833 *
x4          -2.088e-02  2.900e-03  -7.202 1.75e-05 ***
x5          -1.015e-02  1.837e-03  -5.522 0.000180 ***
x7           1.887e+00  3.828e-01   4.931 0.000449 ***
---
Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Residual standard error: 0.2794 on 11 degrees of freedom
Multiple R-squared:  0.9954,    Adjusted R-squared:  0.9937
F-statistic: 589.8 on 4 and 11 DF,  p-value: 9.5e-13
  • Apparent contradiction: The interpretation for X_3 appears contradictory
    • We would expect that as GNP increases the number of Employed increases
    • This is not the case, because the effect of X_3 is dwarfed by the general increase in Employment over Time (X_7 has large coefficient)

Part 3:
Stepwise regression
and overfitting

On the coefficient of determination R^2

  • Recall the formula for the R^2 coefficient of determination

R^2 = 1 - \frac{\mathop{\mathrm{RSS}}}{\mathop{\mathrm{TSS}}}

  • It always holds that

R^2 \leq 1

  • We used R^2 to measure how well a regression model fits the data
    • Large R^2 implies good fit
    • Small R^2 implies bad fit

Revisiting the Galileo example

Drawback: R^2 increases when number of predictors increases

  • We saw this phenomenon in the Galileo example in Lecture 10

  • Fitting the simple model \rm{distance} = \beta_1 + \beta_2 \, \rm{height} + \varepsilon gave R^2 = 0.9264

  • In contrast the quadratic, cubic, and quartic models gave, respectively R^2 = 0.9903 \,, \qquad R^2 = 0.9994 \,, \qquad R^2 = 0.9998

  • Fitting a higher degree polynomial gives higher R^2

Conclusion: If the degree of the polynomial is sufficiently high, we can get R^2 = 1

  • Indeed, there always exist a polynomial passing exactly through the data points

(\rm{height}_1, \rm{distance}_1) \,, \ldots , (\rm{height}_n, \rm{distance}_n)

  • For such polynomial model, the predictions match the data perfectly

\hat y_i = y_i \,, \qquad \forall \,\, i = 1 , \ldots, n

  • Therefore we have

\mathop{\mathrm{RSS}}= \sum_{i=1}^n (y_i - \hat y_i )^2 = 0 \qquad \implies \qquad R^2 = 1

Overfitting the data

Warning: Adding increasingly higher number of parameters is not always good

  • It might lead to a phenomenon called overfitting
    • The model fits the data very well
    • However the model does not make good predictions

Example 1: In the Galileo example, we saw that

  • R^2 increases when adding higher order terms
  • Howevever, the F-test for Model Slection tells us that the order 3 model is best
  • Going to 4th order improves R^2, but makes predictions worse
    (as detected by F-test for Model Selection comparing Order 3 and 4 models)

Example 2: In the Divorces example, however, things were different

Revisiting the Divorces example

Click here to show the full code
# Divorces data
year <- c(1, 2, 3, 4, 5, 6,7, 8, 9, 10, 15, 20, 25, 30)
percent <- c(3.51, 9.5, 8.91, 9.35, 8.18, 6.43, 5.31,
             5.07, 3.65, 3.8, 2.83, 1.51, 1.27, 0.49)

# Fit linear model
linear <- lm(percent ~ year)

# Fit order 6 model
order_6 <- lm(percent ~ year  + I( year^2 ) + I( year^3 ) +
                                I( year^4 ) + I( year^5 ) +
                                I( year^6 ))

# Scatter plot of data
plot(year, percent, xlab = "", ylab = "", pch = 16, cex = 2)

# Add labels
mtext("Years of marriage", side = 1, line = 3, cex = 2.1)
mtext("Risk of divorce", side = 2, line = 2.5, cex = 2.1)

# Plot Linear Vs Quadratic
polynomial <- Vectorize(function(x, ps) {
  n <- length(ps)
  sum(ps*x^(1:n-1))
}, "x")
curve(polynomial(x, coef(linear)), add=TRUE, col = "red", lwd = 2)
curve(polynomial(x, coef(order_6)), add=TRUE, col = "blue", lty = 2, lwd = 3)
legend("topright", legend = c("Linear", "Order 6"),
       col = c("red", "blue"), lty = c(1,2), cex = 3, lwd = 3)


  • The best model seems to be Linear y = \beta_1 + \beta_2 x + \varepsilon

  • Linear model interpretation:

    • The risk of divorce is decreasing in time
    • The risk peak in year 2 is explained by unusually low risk in year 1

Revisiting the Divorces example

Click here to show the full code
# Divorces data
year <- c(1, 2, 3, 4, 5, 6,7, 8, 9, 10, 15, 20, 25, 30)
percent <- c(3.51, 9.5, 8.91, 9.35, 8.18, 6.43, 5.31,
             5.07, 3.65, 3.8, 2.83, 1.51, 1.27, 0.49)

# Fit linear model
linear <- lm(percent ~ year)

# Fit order 6 model
order_6 <- lm(percent ~ year  + I( year^2 ) + I( year^3 ) +
                                I( year^4 ) + I( year^5 ) +
                                I( year^6 ))

# Scatter plot of data
plot(year, percent, xlab = "", ylab = "", pch = 16, cex = 2)

# Add labels
mtext("Years of marriage", side = 1, line = 3, cex = 2.1)
mtext("Risk of divorce", side = 2, line = 2.5, cex = 2.1)

# Plot Linear Vs Quadratic
polynomial <- Vectorize(function(x, ps) {
  n <- length(ps)
  sum(ps*x^(1:n-1))
}, "x")
curve(polynomial(x, coef(linear)), add=TRUE, col = "red", lwd = 2)
curve(polynomial(x, coef(order_6)), add=TRUE, col = "blue", lty = 2, lwd = 3)
legend("topright", legend = c("Linear", "Order 6"),
       col = c("red", "blue"), lty = c(1,2), cex = 3, lwd = 3)

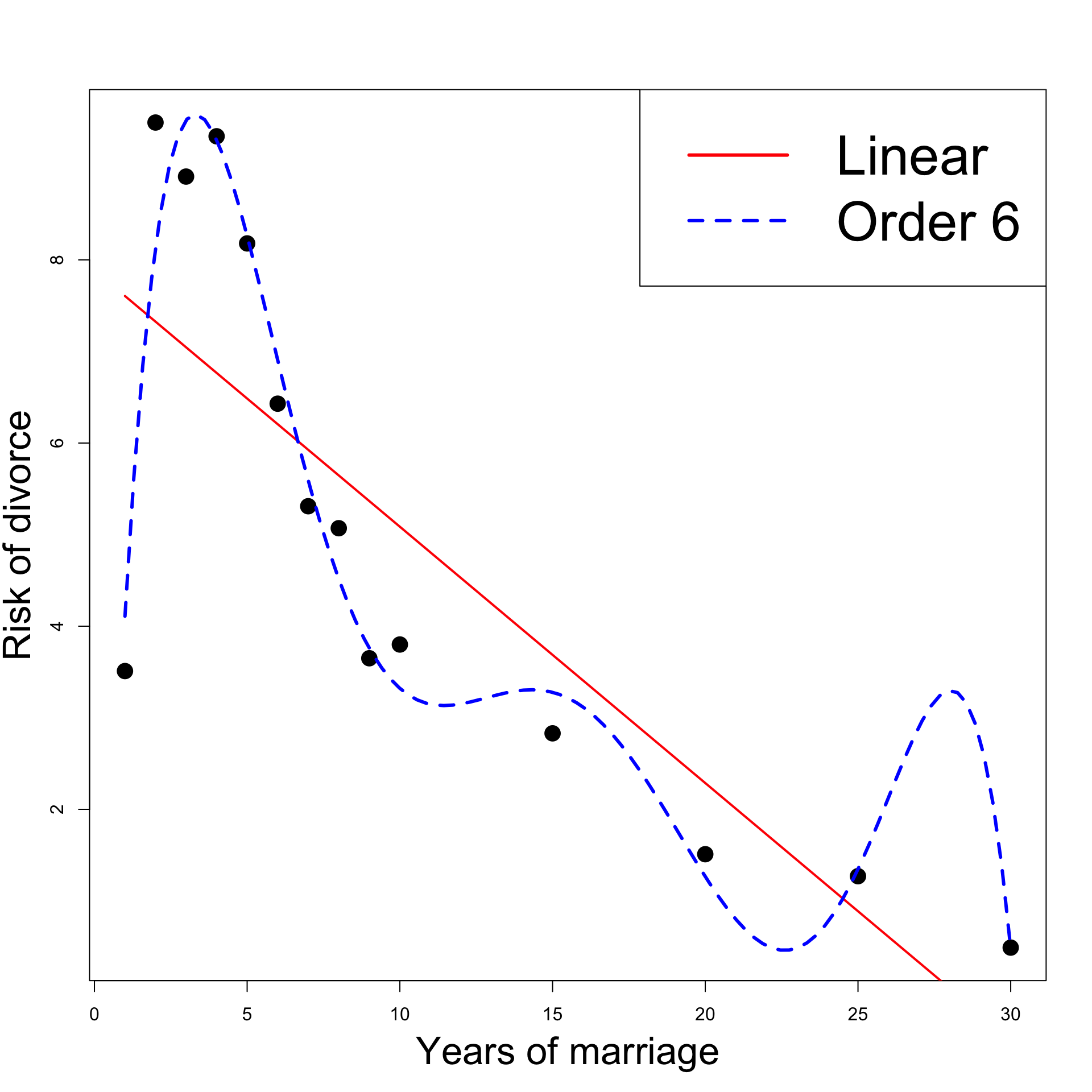

  • However, fitting Order 6 polynomial yields better results
    • The coefficient R^2 increases (of course!)
    • F-test for Model Selection prefers Order 6 model to the linear one
  • Statistically, Order 6 model is better than Linear model
    • In the sense that Order 6 makes better predictions

Revisiting the Divorces example

Click here to show the full code
# Divorces data
year <- c(1, 2, 3, 4, 5, 6,7, 8, 9, 10, 15, 20, 25, 30)
percent <- c(3.51, 9.5, 8.91, 9.35, 8.18, 6.43, 5.31,
             5.07, 3.65, 3.8, 2.83, 1.51, 1.27, 0.49)

# Fit linear model
linear <- lm(percent ~ year)

# Fit order 6 model
order_6 <- lm(percent ~ year  + I( year^2 ) + I( year^3 ) +
                                I( year^4 ) + I( year^5 ) +
                                I( year^6 ))

# Scatter plot of data
plot(year, percent, xlab = "", ylab = "", pch = 16, cex = 2)

# Add labels
mtext("Years of marriage", side = 1, line = 3, cex = 2.1)
mtext("Risk of divorce", side = 2, line = 2.5, cex = 2.1)

# Plot Linear Vs Quadratic
polynomial <- Vectorize(function(x, ps) {
  n <- length(ps)
  sum(ps*x^(1:n-1))
}, "x")
curve(polynomial(x, coef(linear)), add=TRUE, col = "red", lwd = 2)
curve(polynomial(x, coef(order_6)), add=TRUE, col = "blue", lty = 2, lwd = 3)
legend("topright", legend = c("Linear", "Order 6"),
       col = c("red", "blue"), lty = c(1,2), cex = 3, lwd = 3)

  • However, looking at the plot:
    • Order 6 model introduces unnatural spike at 27 years
    • This is a sign of overfitting
  • Question:
    • R^2 coefficient and F-test are in favor of Order 6 model
    • How do we rule out Order 6 model?
  • Answer: We need a new measure for comparing regression models
    • AIC

Akaike information criterion (AIC)

  • The AIC is a number which measures how well a regression model fits the data

  • Also R^2 measures how well a regression model fits the data

  • The difference between AIC and R^2 is that AIC also accounts for overfitting

Definition

The AIC is

{\rm AIC} := 2p - 2 \log ( \hat{L} )

  • p = number of parameters in the model

  • \hat{L} = maximum value of the likelihood function

Rewriting the AIC

  • In past lectures, we have shown that general regression satisfies

\log(\hat L)= -\frac{n}{2}\log(2\pi) - \frac{n}{2}\log(\hat\sigma^2) - \frac{1}{2\hat\sigma^2} \mathop{\mathrm{RSS}}\,, \qquad \hat \sigma^2 := \frac{\mathop{\mathrm{RSS}}}{n}

  • Therefore

\log(\hat L)= - \frac{n}{2} \log \left( \frac{\mathop{\mathrm{RSS}}}{n} \right) + C

  • C is constant depending only on the number of sample points

  • Thus, C does not change if the data does not change

Akaike information criterion (AIC)

  • We obtain the following equivalent formula for AIC

{\rm AIC} = 2p + n \log \left( \frac{ \mathop{\mathrm{RSS}}}{n} \right) - 2C

  • We now see that AIC accounts for
    • Data fit: since the data fit term \mathop{\mathrm{RSS}} is present
    • Model complexity: Since the number of degrees of freedom p is present
  • Therefore, a model with low AIC is such that:
    1. Model fits data well
    2. Model is not too complex, preventing overfitting
  • Conclusion: sometimes AIC is better than R^2 when comparing two models

Stepwise regression and AIC

  • Stepwise regression function in R uses AIC to compare models
    • the model with lowest AIC is selected
  • Hence, Stepwise regression outputs the model which, at the same time
    1. Best fits the given data
    2. Prevents overfitting
  • Example: Apply Stepwise regression to divorces examples to compare
    • Linear model
    • Order 6 model

Example: Divorces

Click here to show the full code
# Divorces data
year <- c(1, 2, 3, 4, 5, 6,7, 8, 9, 10, 15, 20, 25, 30)
percent <- c(3.51, 9.5, 8.91, 9.35, 8.18, 6.43, 5.31,
             5.07, 3.65, 3.8, 2.83, 1.51, 1.27, 0.49)

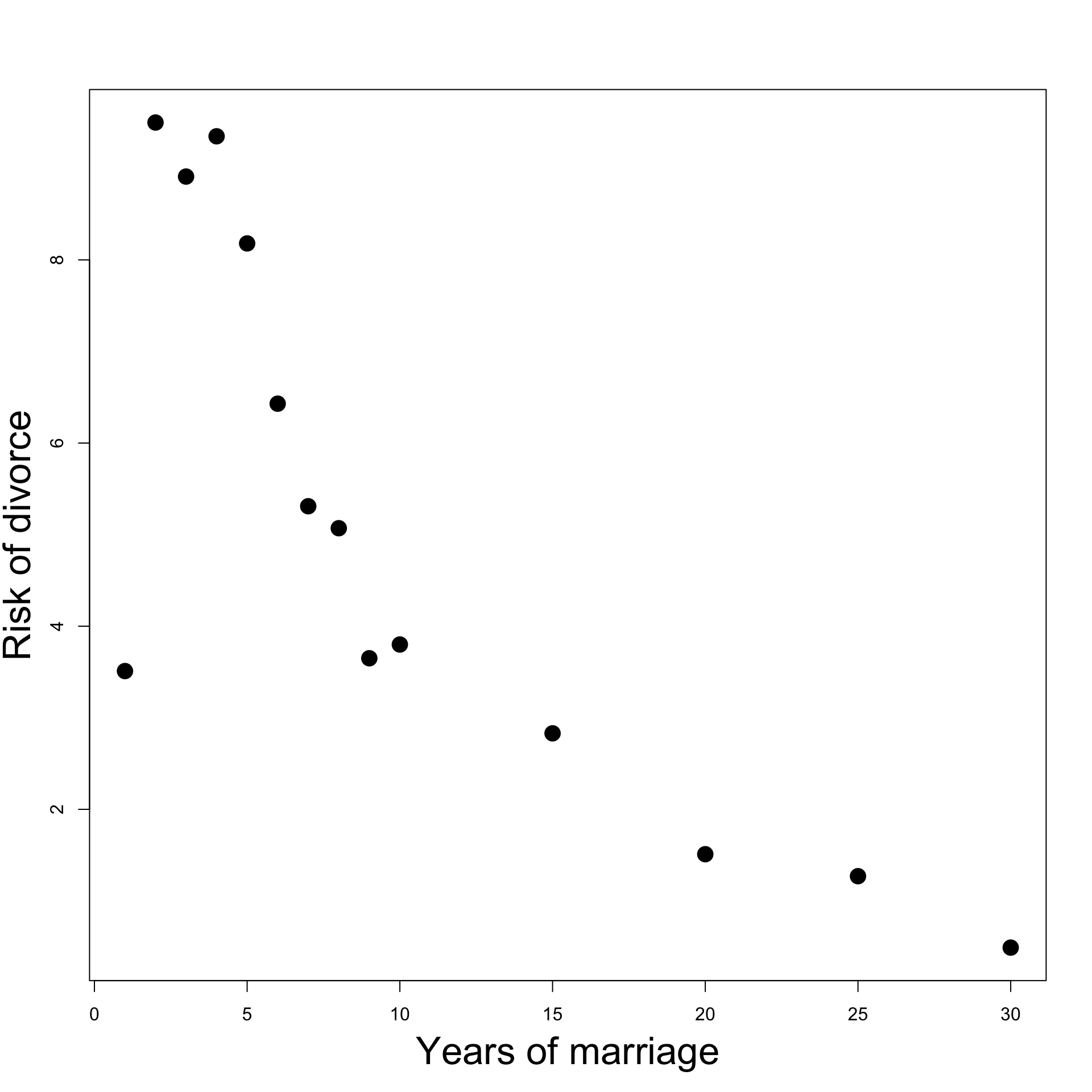

# Scatter plot of data
plot(year, percent, xlab = "", ylab = "", pch = 16, cex = 2)

# Add labels
mtext("Years of marriage", side = 1, line = 3, cex = 2.1)
mtext("Risk of divorce", side = 2, line = 2.5, cex = 2.1)

Years of Marriage % divorces
1 3.51
2 9.50
3 8.91
4 9.35
5 8.18
6 6.43
7 5.31
8 5.07
9 3.65
10 3.80
15 2.83
20 1.51
25 1.27
30 0.49

Fitting the null model

# Divorces data
year <- c(1, 2, 3, 4, 5, 6,7, 8, 9, 10, 15, 20, 25, 30)
percent <- c(3.51, 9.5, 8.91, 9.35, 8.18, 6.43, 5.31,
             5.07, 3.65, 3.8, 2.83, 1.51, 1.27, 0.49)
  • The null model is

{\rm percent} = \beta_1 + \varepsilon

  • Fit the null model with
null.model <- lm(percent ~ 1)

Fitting the full model

  • The full model is the Order 6 model

\rm{percent} = \beta_1 + \beta_2 \, {\rm year} + \beta_3 \, {\rm year}^2 + \ldots + \beta_7 \, {\rm year}^6

  • Fit the full model with
full.model <- lm(percent ~ year  + I( year^2 ) + I( year^3 ) +
                                   I( year^4 ) + I( year^5 ) +
                                   I( year^6 ))

Stepwise regression

We run stepwise regression and save the best model:

best.model <- step(null.model,
                  direction = "both",
                  scope = formula(full.model))


  • The selected model is linear, not the Order 6 polynomial!
summary(best.model)

Call:
lm(formula = percent ~ year)

.....
  • To understand how step made this choice, let us examine its output

Start:  AIC=32.46
percent ~ 1

            Df Sum of Sq     RSS    AIC
+ year       1    80.966  42.375 19.505
+ I(year^2)  1    68.741  54.600 23.054
+ I(year^3)  1    56.724  66.617 25.839
+ I(year^4)  1    48.335  75.006 27.499
+ I(year^5)  1    42.411  80.930 28.563
+ I(year^6)  1    38.068  85.273 29.295
<none>                   123.341 32.463
Step:  AIC=19.5
percent ~ year

            Df Sum of Sq     RSS    AIC
<none>                    42.375 19.505
+ I(year^4)  1     3.659  38.716 20.241
+ I(year^3)  1     3.639  38.736 20.248
+ I(year^5)  1     3.434  38.941 20.322
+ I(year^6)  1     3.175  39.200 20.415
+ I(year^2)  1     2.826  39.549 20.539
- year       1    80.966 123.341 32.463


  • The first part of the output is on the left
  • As requested, step begins with the null model: percent ~ 1
  • This model has an AIC of 32.46
  • step then tests adding each variable from the full model one at a time
  • This includes all polynomial terms: + I(year^k)
  • For each, it computes the AIC and ranks the terms by lowest value
  • The largest improvement comes from adding year. Therefore, the variable year is selected
  • This means the current best model is: percent ~ year

Start:  AIC=32.46
percent ~ 1

            Df Sum of Sq     RSS    AIC
+ year       1    80.966  42.375 19.505
+ I(year^2)  1    68.741  54.600 23.054
+ I(year^3)  1    56.724  66.617 25.839
+ I(year^4)  1    48.335  75.006 27.499
+ I(year^5)  1    42.411  80.930 28.563
+ I(year^6)  1    38.068  85.273 29.295
<none>                   123.341 32.463
Step:  AIC=19.5
percent ~ year

            Df Sum of Sq     RSS    AIC
<none>                    42.375 19.505
+ I(year^4)  1     3.659  38.716 20.241
+ I(year^3)  1     3.639  38.736 20.248
+ I(year^5)  1     3.434  38.941 20.322
+ I(year^6)  1     3.175  39.200 20.415
+ I(year^2)  1     2.826  39.549 20.539
- year       1    80.966 123.341 32.463


  • Second part of output is on the right: step resumes from the best model percent ~ year
  • R considers:
    • doing nothing (<none>), i.e. keeping the current model
    • adding more predictors (polynomials: + I(year^k))
    • removing the year predictor (- year)
  • For each option, R computes the AIC and ranks them by lowest value
  • The lowest AIC comes from doing nothing – the current model is already best
  • Running step again would yield the same result. Thus, the final model is: percent ~ year

Conclusions

  • Old conclusions (Lecture 10):
    • Linear model has lower R^2 than Order 6 model
    • F-test for Model Selection chooses Order 6 model over Linear model
    • Hence Order 6 model seems better than Linear model
  • New conclusions:
    • Stepwise regression chooses Linear model over Order 6 model
  • Bottom line: The new findings are in line with our intuition:
    • Order 6 model overfits
    • Therefore the Linear model should be preferred

Part 4:
One-way ANOVA

Introduction

  • ANOVA means Analysis of variance

  • Method of comparing means across samples

  • We first present ANOVA in the traditional way

  • Then we show that the ANOVA model is just a special form of linear regression

    • In particular, ANOVA models can be fitted with lm

One-way ANOVA

  • ANOVA allows to compare population means for several independent samples
    • Can be seen as generalization of t-test for two independent samples
  • Suppose we have k populations of interest, with distribution N(\mu_k,\sigma^2)
    • Note that the variance is the same for all populations
  • Sample from population i is denoted x_{i1}, x_{i2}, \ldots , x_{in_i}

Goal: Compare population means \mu_i

Hypothesis set: We test for a difference in means

\begin{align*} H_0 \colon & \mu_1 = \mu_2 = \ldots = \mu_k \\ H_1 \colon & \mu_i \neq \mu_j \,\, \text{ for at least one pair } \, i \neq j \end{align*}

ANOVA is generalization of two-sample t-test to multiple populations

Constructing a Test statistic

  • We formulate a statistic which compares
    • variations within a single group to
    • variations among the groups
  • Denote the mean of the i-th sample by

\overline{x}_i = \frac{1}{n_i} \sum_{j=1}^{n_i} x_{ij}

  • Denote the grand mean of all samples by

\overline{x} = \frac{1}{k} \sum_{i=1}^k \overline{x}_i = \frac{1}{k} \sum_{i=1}^k \left( \frac{1}{n_i} \sum_{j=1}^{n_i} x_{ij} \right)

  • The total sum of squares is

\mathop{\mathrm{TSS}}:= \sum_{i=1}^{k} \sum_{j=1}^{n_i} ( x_{ij} - \overline{x} )^2

  • \mathop{\mathrm{TSS}} measures deviation of samples from the grand mean \overline{x}

  • The Error Sum of Squares is

\mathop{\mathrm{ESS}}= \sum_{i=1}^k \sum_{j=1}^{n_i} (x_{ij} - \overline{x}_i)^2

  • The interior sum of \mathop{\mathrm{ESS}} measures the variation within the i-th group

  • \mathop{\mathrm{ESS}} is then a measure of the within-group variability

  • The Treatment Sum of Squares is

\mathop{\mathrm{TrSS}}= \sum_{i=1}^{k} n_i ( \overline{x}_i - \overline{x})^2

  • \mathop{\mathrm{TrSS}} compares the means for each group \overline{x}_i with the grand mean \overline{x}

  • \mathop{\mathrm{TrSS}} is then a measure of variability among the groups

  • Note: Treatment comes from medical experiments, where the population mean models the effect of some treatment

Proposition
The following decomposition holds

\mathop{\mathrm{TSS}}= \mathop{\mathrm{ESS}}+ \mathop{\mathrm{TrSS}}

The ANOVA F-statistic

Definition
The F-statistic for the one-way ANOVA test is

F = \frac{ \mathop{\mathrm{TrSS}}}{ k - 1 } \bigg/ \frac{ \mathop{\mathrm{ESS}}}{ n - k }

Theorem
Assume to have k independent, i.i.d samples from N(\mu_i,\sigma^2). Then

F \ \sim \ F_{k-1,n-k}

\begin{align*} \text{Case 1: } \, H_0 \, \text{ holds } & \, \iff \, \text{Population means are all the same} \\[15pt] & \, \iff \, \text{i-th sample mean is similar to grand mean: } \, \overline{x}_i \approx \overline{x} \,, \quad \forall\, i\\[15pt] & \, \iff \, \mathop{\mathrm{TrSS}}= \sum_{i=1}^{k} n_i ( \overline{x}_i - \overline{x})^2 \approx 0 \, \iff \, F = \frac{ \mathop{\mathrm{TrSS}}}{ k - 1 } \bigg/ \frac{ \mathop{\mathrm{ESS}}}{ n - k } \approx 0 \end{align*}

\begin{align*} \text{Case 2: } \, H_1 \, \text{ holds } & \, \iff \, \text{At least two population means are different} \\[15pt] & \, \iff \, \text{At least two populations satisfy } \, (\overline{x}_i - \overline{x})^2 \gg 0 \\[15pt] & \, \iff \, \mathop{\mathrm{TrSS}}= \sum_{i=1}^{k} n_i ( \overline{x}_i - \overline{x})^2 \gg 0 \, \iff \, F = \frac{ \mathop{\mathrm{TrSS}}}{ k - 1 } \bigg/ \frac{ \mathop{\mathrm{ESS}}}{ n - k } \gg 0 \end{align*}

Therefore, the test is one-sided: \,\, Reject H_0 \iff F \gg 0

The one-way ANOVA F-test

Suppose given k independent samples

  • Sample x_{i1}, \ldots, x_{in_i} i.i.d from N(\mu_i,\sigma^2)

Goal: Compare population means \mu_i

Hypothesis set: We test for a difference in means

\begin{align*} H_0 \colon & \mu_1 = \mu_2 = \ldots = \mu_k \\ H_1 \colon & \mu_i \neq \mu_j \,\, \text{ for at least one pair } \, i \neq j \end{align*}

Procedure: 3 Steps

  1. Calculation: Compute the samples mean and grand mean \overline{x}_i = \frac{1}{n_i} \sum_{j=1}^{n_i} x_{ij} \,, \qquad \overline{x} = \frac{1}{k} \sum_{i=1}^k \overline{x}_i Compute the \mathop{\mathrm{TrSS}} and \mathop{\mathrm{ESS}} \mathop{\mathrm{TrSS}}= \sum_{i=1}^{k} n_i ( \overline{x}_i - \overline{x})^2 \,, \qquad \mathop{\mathrm{ESS}}= \sum_{i=1}^k \sum_{j=1}^{n_i} (x_{ij} - \overline{x}_i)^2 Compute the F-statistic F = \frac{ \mathop{\mathrm{TrSS}}}{ k - 1 } \bigg/ \frac{ \mathop{\mathrm{ESS}}}{ n - k } \ \sim \ F_{k-1,n-k}

  1. Statistical Tables or R: Find either
    • Critical value F^* in Table 3
    • p-value in R


  1. Interpretation: Reject H_0 when either p < 0.05 \qquad \text{ or } \qquad F \in \,\,\text{Rejection Region}
Alternative Rejection Region F^* p-value
\exists \,\, i \neq j s.t. \mu_i \neq \mu_j F > F^* F_{k-1,n-k}(0.05) P(F_{k-1,n-k} > F)

Worked Example: Calorie Consumption

  • Consider 15 subjects split at random into 3 groups

  • Each group is assigned a month

  • For each group we record the number of calories consumed on a randomly chosen day

  • Assume that calories consumed are normally distributed with common variance, but maybe different means

May 2166 1568 2233 1882 2019
Sep 2279 2075 2131 2009 1793
Dec 2226 2154 2583 2010 2190

Question: Is there a difference in calories consumed each month?

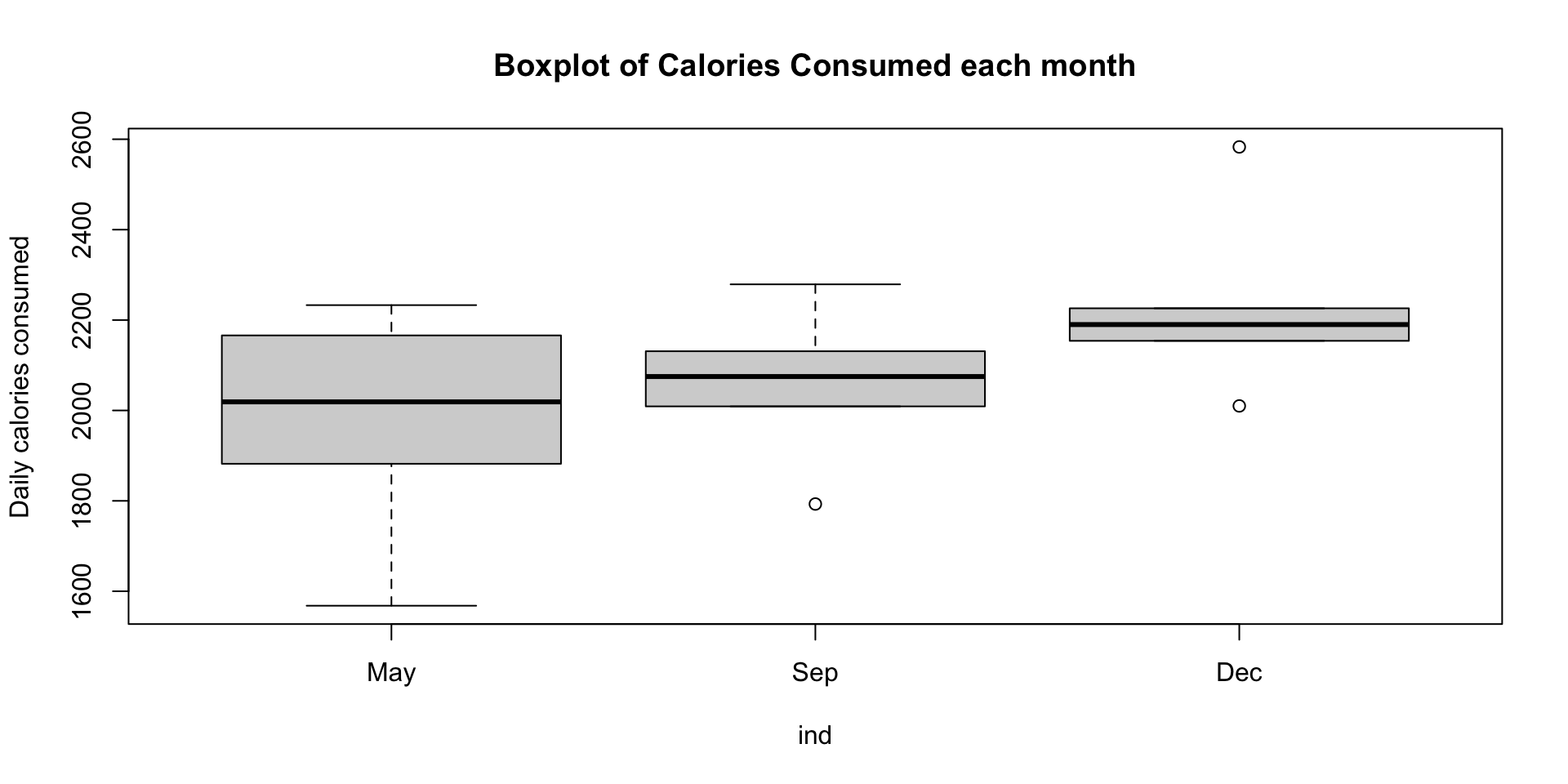

Boxplot of the data

To visually compare sample means for each population

# Enter the data
may <- c(2166, 1568, 2233, 1882, 2019)
sep <- c(2279, 2075, 2131, 2009, 1793)
dec <- c(2226, 2154, 2583, 2010, 2190)

# Combine vectors into a list and label them
data <- list(May = may, September = sep, December = dec)

# Create the boxplot
boxplot(data,
        main = "Boxplot of Calories Consumed each month",
        ylab = "Daily calories consumed")

  • It seems that consumption is, on average, higher in colder months

  • We suspect population means are different: need one-way ANOVA F-test

Performing the one-way ANOVA F-test

  • We first compute sample means and grand mean \overline{x}_i = \frac{1}{n_i} \sum_{j=1}^{n_i} x_{ij} \,, \qquad \overline{x} = \frac{1}{k} \sum_{i=1}^k \overline{x}_i
# Compute means for each sample
may.bar <- mean(may)
sep.bar <- mean(sep)
dec.bar <- mean(dec)


# Compute grand mean
x.bar <- mean(c(may, sep, dec))

  • There are 3 groups, each with n_i = 5 samples

  • Compute the \mathop{\mathrm{TrSS}} and \mathop{\mathrm{ESS}} \mathop{\mathrm{TrSS}}= \sum_{i=1}^{k} n_i ( \overline{x}_i - \overline{x})^2 = 5 \sum_{i=1}^{k} ( \overline{x}_i - \overline{x})^2 \,, \qquad \mathop{\mathrm{ESS}}= \sum_{i=1}^k \sum_{j=1}^{n_i} (x_{ij} - \overline{x}_i)^2

# Compute TrSS
TrSS <- 5 * ( (may.bar - x.bar)^2 + (sep.bar - x.bar)^2 + (dec.bar - x.bar)^2 )

# Compute ESS
ESS <- sum((may - may.bar)^2) + sum((sep - sep.bar)^2) + sum((dec - dec.bar)^2)

# Print result
c(TrSS = TrSS, ESS = ESS)
    TrSS      ESS
174664.1 586719.6

  • We have k = 3 groups; \, n = 15 total samples

  • Compute the F-statistic

F = \frac{ \mathop{\mathrm{TrSS}}}{ k - 1 } \bigg/ \frac{ \mathop{\mathrm{ESS}}}{ n - k } \ \sim \ F_{k-1,n-k}

# Enter number of groups and sample size
k <- 3; n <- 15

# Compute F-statistic
F.obs = ( TrSS/(k-1) ) / ( ESS/(n-k) )

# Print
F.obs
[1] 1.786177

  • Compute the p-value

p = P( F_{k-1,n-k} > F ) = 1 - P( F_{k-1,n-k} \leq F )

# Compute the p-value
p <- 1 - pf(F.obs, df1 = k-1, df2 = n-k)

# Print
p
[1] 0.2093929


  • The p-value is p > 0.05 \quad \implies \quad Do not reject H_0

  • No reason to believe that population means are different

  • Conclusion: Despite the boxplot, the variation in average monthly calories consumption can be explained by chance only

Next: Use native R command for ANOVA test - Need Factors

Part 5:
Factors in R

Factors in R

  • Factors: A way to represent discrete variables taking a finite number of values

  • Example: Suppose to have a vector of people’s names

firstname <- c("Liz", "Jolene", "Susan", "Boris", "Rochelle", "Tim")
  • Let us store the sex of each person as either
    • Numbers: \, \texttt{1} represents female and \texttt{0} represents male
    • Strings: \, \texttt{"female"} and \texttt{"male"}
sex.num <- c(1, 1, 1, 0, 1, 0)
sex.char <- c("female", "female", "female", "male", "female", "male")

The factor command

  • The \, \texttt{factor} command turns a vector into a factor
sex.num <- c(1, 1, 1, 0, 1, 0)

# Turn sex.num into a factor
sex.num.factor <- factor(sex.num)

# Print the factor obtained
print(sex.num.factor)
[1] 1 1 1 0 1 0
Levels: 0 1


  • The factor \, \texttt{sex.num.factor} looks like the original vector \, \texttt{sex.num}

  • The difference is that the factor \, \texttt{sex.num.factor} contains levels

    • In this case the levels are \, \texttt{0} and \, \texttt{1}
    • Levels are all the (discrete) values assumed by the vector \, \texttt{sex.num}

The factor command

  • In the same way we can convert \, \texttt{sex.char} into a factor
sex.char <- c("female", "female", "female", "male", "female", "male")

# Turn sex.char into a factor
sex.char.factor <- factor(sex.char)

# Print the factor obtained
print(sex.char.factor)
[1] female female female male   female male
Levels: female male


  • Again, the factor \, \texttt{sex.char.factor} looks like the original vector \, \texttt{sex.char}

  • Again, the difference is that the factor \, \texttt{sex.char.factor} contains levels

    • In this case the levels are strings \, \texttt{"female"} and \, \texttt{"male"}
    • These 2 strings are all the values assumed by the vector \, \texttt{sex.char}

Reordering the Levels

  • Factor levels are automatically ordered by R
    • Increasing order for numerical factors; Alphabetical order for string factors
  • We can manually reorder the factor levels. For example, compare:
sex.char <- c("female", "female", "female", "male", "female", "male")

# Turn sex.char into a factor
factor(sex.char)
[1] female female female male   female male
Levels: female male


# Turn sex.char into a factor, swapping the levels
factor(sex.char, levels = c("male", "female"))
[1] female female female male   female male
Levels: male female

Subsetting factors

  • Factors can be subsetted exactly like vectors
sex.num.factor
[1] 1 1 1 0 1 0
Levels: 0 1


sex.num.factor[2:5]
[1] 1 1 0 1
Levels: 0 1

Subsetting factors

  • Warning: After subsetting a factor, all defined levels are still stored
    • This is true even if some of the levels are no longer represented in the subsetted factor


sex.char.factor
[1] female female female male   female male
Levels: female male


sex.char.factor[c(1:3, 5)]
[1] female female female female
Levels: female male


  • The levels of sex.char.factor[c(1:3, 5)] are still \, \texttt{"female"} and \, \texttt{"male"}

  • This is despite sex.char.factor[c(1:3, 5)] only containing \, \texttt{"female"}

The levels function

  • The levels of a factor can be extracted with the function \, \texttt{levels}
levels(sex.char.factor)
[1] "female" "male"


  • Note: Levels of a factor are always stored as strings, even if originally numbers


levels(sex.num.factor)
[1] "0" "1"


  • The levels of \, \texttt{sex.num.factor} are the strings \, \texttt{"0"} and \, \texttt{"1"}

  • This is despite the original vector \, \texttt{sex.num} being numeric

  • The command \, \texttt{factor} converted numeric levels into strings

Relabelling a factor

  • The function \, \texttt{levels} can also be used to relabel factors

  • For example we can relabel

    • \, \texttt{female} into \, \texttt{f}
    • \, \texttt{male} into \, \texttt{m}
# Relabel levels of sex.char.factor
levels(sex.char.factor) <- c("f", "m")

# Print relabelled factor
print(sex.char.factor)
[1] f f f m f m
Levels: f m

Logical subsetting of factors

  • Logical subsetting is done exactly like in the case of vectors

  • Important: Need to remember that levels are always strings

  • Example: To identify all the men in \, \texttt{sex.num.factor} we do


sex.num.factor == "0"
[1] FALSE FALSE FALSE  TRUE FALSE  TRUE


  • To retrieve names of men stored in \, \texttt{firstname} use logical subsetting


firstname <- c("Liz", "Jolene", "Susan", "Boris", "Rochelle", "Tim")

firstname[ sex.num.factor == "0" ]
[1] "Boris" "Tim"

Part 6:
ANOVA with aov

Anova with aov

  • We have conducted the one-way ANOVA F-test by hand
    • This is cumbersome with large datasets with many populations
    • The quick way in R is to use the command aov (analysis of variance)

Method

  • Place all the samples into one long vector values

  • Create a vector with corresponding group labels ind

  • Turn ind into a factor

  • Combine values and ind into a dataframe d

  • Therefore, dataframe d contains:

    • First Column: values for each sample
    • Second Column: ind, indicating the group the corresponding sample is from
  • The ANOVA F-test is performed with

\text{aov(values } \sim \text{ ind, data = d)}

  • values ~ ind is the formula coupling values to the corresponding group

Example 1: Calorie Consumption

  • Recall: we have 15 subjects split at random into 3 groups

  • Each group is assigned a month

  • For each group we record the number of calories consumed on a randomly chosen day

  • Assume that calories consumed are normally distributed with common variance, but maybe different means

May 2166 1568 2233 1882 2019
Sep 2279 2075 2131 2009 1793
Dec 2226 2154 2583 2010 2190

Question: Is there a difference in calories consumed each month?

Preparing the data

# Enter the data
may <- c(2166, 1568, 2233, 1882, 2019)
sep <- c(2279, 2075, 2131, 2009, 1793)
dec <- c(2226, 2154, 2583, 2010, 2190)

# Combine values into one long vector
values <- c(may, sep, dec)

# Create vector of group labels
ind <- rep(c("May", "Sep", "Dec"), each = 5)

# Turn vector of group labels into a factor
# Note that we order the levels
ind <- factor(ind, levels = c("May", "Sep", "Dec"))

# Combine values and labels into a data frame
d <- data.frame(values, ind)

# Print d for visualization
print(d)
   values ind
1    2166 May
2    1568 May
3    2233 May
4    1882 May
5    2019 May
6    2279 Sep
7    2075 Sep
8    2131 Sep
9    2009 Sep
10   1793 Sep
11   2226 Dec
12   2154 Dec
13   2583 Dec
14   2010 Dec
15   2190 Dec

Boxplot of the data

  • Previously, we constructed a boxplot by placing the data into a list

  • Now that we have a dataframe, the commands are much simpler:

    • Pass the dataframe d to boxplot
    • Pass the formula values ~ ind
boxplot(values ~ ind, data = d,
        main = "Boxplot of Calories Consumed each month",
        ylab = "Daily calories consumed")

  • Already observed: Consumption is, on average, higher in colder months

  • We suspect population means are different: need one-way ANOVA F-test

  • We have already conducted the test by hand. We now use aov

Calling aov

  • Data is stored in dataframe d
    • 1st column values contains calories consumed
    • 2nd column ind contains month labels
# Perform ANOVA F-test for difference in means
model <- aov(values ~ ind, data = d)

# Print summary
summary(model)
            Df Sum Sq Mean Sq F value Pr(>F)
ind          2 174664   87332   1.786  0.209
Residuals   12 586720   48893
  • As obtained with hand calculation, the p-value is p = 0.209

  • p > 0.05 \implies Do not reject H_0: Population means are similar

Example 2: ANOVA vs Two-sample t-test

When only 2 groups are present, they coincide:

  • ANOVA F-test for difference in means

  • Two-sample t-test for difference in means
    (with assumption of equal variance)

Example: Let us compare calories data only for the months of May and Dec


May 2166 1568 2233 1882 2019
Dec 2226 2154 2583 2010 2190

  • First, let us conduct a two-sample t-test for difference in means
# Enter the data
may <- c(2166, 1568, 2233, 1882, 2019)
dec <- c(2226, 2154, 2583, 2010, 2190)

# Two-sample t-test for difference in means
t.test(may, dec, var.equal = T)$p.value
[1] 0.1259272


  • The p-value is p \approx 0.126

  • Since p > 0.05, we do not reject H_0

  • In particular, we conclude that populations means are similar:

    • Calories consumed in May and December do not differ on average

  • Let us now compare the two population means with the ANOVA F-test
# Combine values into one long vector
values <- c(may, dec)

# Create factor of group labels
ind <- factor(rep(c("May", "Dec"), each = 5))

# Combine values and labels into a data frame
d <- data.frame(values, ind)

# Perform ANOVA F-test
model <- aov(values ~ ind, data = d)

# Print summary
summary(model)
            Df Sum Sq Mean Sq F value Pr(>F)
ind          1 167702  167702   2.919  0.126
Residuals    8 459636   57455


  • The p-values p \approx 0.126 coincide! ANOVA F-test and Two-sample t-test are equivalent

  • This fact is discussed in details in the next 2 Parts

Part 7:
Dummy variable
Regression

Explaining the terminology

  • Dummy variable: Variables X which are qualitative in nature

  • ANOVA: refers to situations where regression models contain

    • only dummy variables X
    • This generalizes the ANOVA F-test seen earlier
  • ANCOVA: refers to situations where regression models contain a combination of

    • dummy variables and quantitative (the usual) variables

Dummy variables

  • Dummy variable:

    • A variable X which is qualitative in nature
    • Often called cathegorical variables
  • Regression models can include dummy variables

  • Qualitatitve binary variables can be represented by X with

    • X = 1 \, if effect present
    • X = 0 \, if effect not present
  • Examples of binary quantitative variables are

    • On / Off
    • Yes / No
    • Sample is from Population A / B

Dummy variables

  • Dummy variables can also take several values
    • These values are often called levels
    • Such variables are represented by X taking discrete values
  • Examples of dummy variables with several levels
    • Month: Jan, Feb, Mar, …
    • Season: Summer, Autumn, Winter, Spring
    • Priority: Low, Medium, High
    • Quarterly sales data: Q1, Q2, Q3, Q4
    • UK regions: East Midlands, London Essex, North East/Yorkshire, …

Example: Fridge sales data

  • Consider the dataset on quarterly fridge sales fridge_sales.txt
    • Each entry represents sales data for 1 quarter
    • 4 consecutive entries represent sales data for 1 year


   fridge.sales durable.goods.sales q1 q2 q3 q4 quarter
1          1317               252.6  1  0  0  0       1
2          1615               272.4  0  1  0  0       2
3          1662               270.9  0  0  1  0       3
4          1295               273.9  0  0  0  1       4
5          1271               268.9  1  0  0  0       1
6          1555               262.9  0  1  0  0       2
7          1639               270.9  0  0  1  0       3
8          1238               263.4  0  0  0  1       4
9          1277               260.6  1  0  0  0       1
10         1258               231.9  0  1  0  0       2
11         1417               242.7  0  0  1  0       3
12         1185               248.6  0  0  0  1       4
13         1196               258.7  1  0  0  0       1
14         1410               248.4  0  1  0  0       2
15         1417               255.5  0  0  1  0       3
16          919               240.4  0  0  0  1       4
17          943               247.7  1  0  0  0       1
18         1175               249.1  0  1  0  0       2
19         1269               251.8  0  0  1  0       3
20          973               262.0  0  0  0  1       4
21         1102               263.3  1  0  0  0       1
22         1344               280.0  0  1  0  0       2
23         1641               288.5  0  0  1  0       3
24         1225               300.5  0  0  0  1       4
25         1429               312.6  1  0  0  0       1
26         1699               322.5  0  1  0  0       2
27         1749               324.3  0  0  1  0       3
28         1117               333.1  0  0  0  1       4
29         1242               344.8  1  0  0  0       1
30         1684               350.3  0  1  0  0       2
31         1764               369.1  0  0  1  0       3
32         1328               356.4  0  0  0  1       4

  • Below are the first 4 entries of the Fridge sales dataset
    • These correspond to 1 year of sales data
  • First two variables are quantitative
    • Fridge Sales = total quarterly fridge sales (in million $)
    • Duarable Goods Sales = total quarterly durable goods sales (in billion $)
  • Remaining variables are qualitative:
    • Q1, Q2, Q3, Q4 \, take values 0 / 1 \quad (representing 4 yearly quarters)
    • Quarter \, takes values 1 / 2 / 3 / 4 \quad (equivalent representation of quarters)


Fridge Sales Durable Goods Sales Q1 Q2 Q3 Q4 Quarter
1317 252.6 1 0 0 0 1
1615 272.4 0 1 0 0 2
1662 270.9 0 0 1 0 3
1295 273.9 0 0 0 1 4

Encoding Quarter in regression model

Two alternative approaches:

  1. Include 4-1 = 3 dummy variables with values 0 / 1
    • Each dummy variable represents 1 Quarter
    • We need 3 variables to represent 4 Quarters (plus the intercept)
  2. Include one variable which takes values 1 / 2 / 3 / 4

Differences between the two approaches:

  1. This method works with command lm

  2. This method works with the command aov

The dummy variable trap

  • Suppose you follow the first approach:
    • Encode each quarter with a separate variable
  • If you have 4 different levels, you would need
    • 4-1=3 dummy variables
    • the intercept term
  • In general: if you have k different levels, you would need
    • k-1 dummy variables
    • the intercept term

Question: Why only k - 1 dummy variables?

Answer: To avoid the dummy variable trap

Example: Dummy variable trap

To illustrate the dummy variable trap, consider the following

  • Encode each Quarter with one dummy variable \mathbf{1}_i

\mathbf{1}_j(i) = \begin{cases} 1 & \text{ if sample i belongs to Quarter j} \\ 0 & \text{ otherwise} \\ \end{cases}

  • Consider the regression model with intercept

Y = \beta_0 \cdot (1) + \beta_1 \mathbf{1}_1 + \beta_2 \mathbf{1}_2 + \beta_3 \mathbf{1}_3 + \beta_4 \mathbf{1}_4 + \varepsilon

  • In the above, Y is the quartely Fridge sales data

  • Each data entry belongs to exactly one Quarter. Thus

\mathbf{1}_1 + \mathbf{1}_2 + \mathbf{1}_3 + \mathbf{1}_4 = 1

  • Dummy variable trap: Variables are collinear (linearly dependent)

  • Indeed the design matrix is

Z = \left( \begin{array}{ccccc} 1 & 1 & 0 & 0 & 0 \\ 1 & 0 & 1 & 0 & 0 \\ 1 & 0 & 0 & 1 & 0 \\ 1 & 0 & 0 & 0 & 1 \\ 1 & 1 & 0 & 0 & 0 \\ \dots & \dots & \dots & \dots & \dots \\ \end{array} \right)

  • First column is the sum of remaining columns \quad \implies \quad Multicollinearity

Example: Avoiding dummy variable trap

  • We want to avoid Multicollinearity (or dummy variable trap)

  • How? Drop one dummy variable (e.g. the first) and consider the model

Y = \beta_1 \cdot (1) + \beta_2 \mathbf{1}_2 + \beta_3 \mathbf{1}_3 + \beta_4 \mathbf{1}_4 + \varepsilon

  • If data belongs to Q1, then \mathbf{1}_2 = \mathbf{1}_3 = \mathbf{1}_4 = 0

  • Therefore, in general, we have

\mathbf{1}_2 + \mathbf{1}_3 + \mathbf{1}_4 \not\equiv 1

  • This way we avoid Multicollinearity \quad \implies \quad no trap!

  • Question: How do we interpret the coefficients in the model

Y = \beta_1 \cdot (1) + \beta_2 \mathbf{1}_2 + \beta_3 \mathbf{1}_3 + \beta_4 \mathbf{1}_4 + \varepsilon\qquad ?

  • Answer: Recall the relationship

\mathbf{1}_1 + \mathbf{1}_2 + \mathbf{1}_3 + \mathbf{1}_4 = 1

  • Substituting in the regression model we get

\begin{align*} Y & = \beta_1 \cdot ( \mathbf{1}_1 + \mathbf{1}_2 + \mathbf{1}_3 + \mathbf{1}_4 ) + \beta_2 \mathbf{1}_2 + \beta_3 \mathbf{1}_3 + \beta_4 \mathbf{1}_4 + \varepsilon\\[10pts] & = \beta_1 \mathbf{1}_1 + (\beta_1 + \beta_2) \mathbf{1}_2 + (\beta_1 + \beta_3) \mathbf{1}_3 + (\beta_1 + \beta_4 ) \mathbf{1}_4 + \varepsilon \end{align*}

Therefore, the regression coefficients are such that

Group Increase Described By
\mathbf{1}_1 \beta_1
\mathbf{1}_2 \beta_1 + \beta_2
\mathbf{1}_3 \beta_1 + \beta_3
\mathbf{1}_4 \beta_1 + \beta_4

Conclusion: When fitting regression model with dummy variables

  • Increase for first dummy variable \mathbf{1}_1 is intercept term \beta_1

  • Increase for successive dummy variables \mathbf{1}_i with i > 1 is computed by \beta_1 + \beta_i

Intercept coefficient acts as base reference point

General case: Dummy variable trap

  • Suppose to have a qualitative variable X which takes k different levels
    • E.g. the previous example has k = 4 quarters
  • Encode each level of X in one dummy variable \mathbf{1}_j

\mathbf{1}_j(i) = \begin{cases} 1 & \text{ if } X(i) = j \\ 0 & \text{ otherwise} \\ \end{cases}

  • To each data entry corresponds one and only one level of X, so that

\mathbf{1}_1 + \mathbf{1}_2 + \ldots + \mathbf{1}_k = 1

  • Hence Multicollinearity if intercept is present \, \implies \, Dummy variable trap!

General case: Avoid the trap!

  • We drop the first dummy variable \mathbf{1}_1 and consider the model

Y = \beta_1 \cdot (1) + \beta_2 \mathbf{1}_2 + \beta_3 \mathbf{1}_3 + \ldots + \beta_k \mathbf{1}_k + \varepsilon

  • For data points such that X = 1, we have

\mathbf{1}_2 = \mathbf{1}_3 = \ldots = \mathbf{1}_k = 0

  • Therefore, in general, we get

\mathbf{1}_2 + \mathbf{1}_3 + \ldots + \mathbf{1}_k \not \equiv 1

  • This way we avoid Multicollinearity \quad \implies \quad no trap!

General case: Interpret the output

  • How to interpret the coefficients in the model

Y = \beta_1 \cdot (1) + \beta_2 \mathbf{1}_2 + \beta_3 \mathbf{1}_3 + \ldots + \beta_k \mathbf{1}_k + \varepsilon\quad ?

  • We can argue similarly to the case m = 4 and use the constraint

\mathbf{1}_1 + \mathbf{1}_2 + \ldots + \mathbf{1}_k = 1

  • Substituting in the regression model we get

Y = \beta_1 \mathbf{1}_1 + (\beta_1 + \beta_2) \mathbf{1}_2 + \ldots + (\beta_1 + \beta_k) \mathbf{1}_k + \varepsilon

Conclusion: When fitting regression model with dummy variables

Group Increase Described By
\mathbf{1}_1 \beta_1
\mathbf{1}_i \beta_1 + \beta_i
  • Increase for first dummy variable \mathbf{1}_1 is intercept term \beta_1

  • Increase for successive dummy variables \mathbf{1}_i with i > 1 is computed by \beta_1 + \beta_i

Intercept coefficient acts as base reference point

Part 8:
ANOVA as Regression

ANOVA F-test and regression

  • ANOVA can be seen as linear regression problem, by using dummy variables

  • In particular, we will show that

    • ANOVA F-test is equivalent to F-test for overall significance


  • We have already seen a particular instance of this fact in the Homework
    • Simple linear regression can be used to perform two-sample t-test
      (recall that two-sample t-test is just the ANOVA F-test with two populations)


  • This was done by considering the model

Y_i = \beta_1 + \beta_2 \, \mathbf{1}_2 (i) + \varepsilon_i

Simple regression for two-sample t-test

  • Assume given two independent normal populations N(\mu_1, \sigma^2) and N(\mu_2, \sigma^2)

  • We have two samples

    • Sample of size n_1 iid from population 1 a = (a_1, \ldots, a_{n_1})
    • Sample of size n_2 iid from population 2 b = (b_1, \ldots, b_{n_2})
  • The data vector y is obtained by concatenating a and b

y = (a,b) = (a_1, \ldots, a_{n_1}, b_1, \ldots, b_{n_2} )

  • We then considered the dummy variable model

Y_i = \beta_1 + \beta_2 \, \mathbf{1}_2 (i) + \varepsilon_i

  • Here \mathbf{1}_2 (i) is the dummy variable relative to population B

\mathbf{1}_2(i) = \begin{cases} 1 & \text{ if i-th sample belongs to population 2} \\ 0 & \text{ otherwise} \end{cases}

  • The regression function is therefore

{\rm I\kern-.3em E}[Y | \mathbf{1}_2 = x] = \beta_1 + \beta_2 x

  • By construction, we have that

Y | \text{sample belongs to population 1} \ \sim \ N(\mu_1, \sigma^2)

  • Therefore, by definition of \mathbf{1}_2, we get

{\rm I\kern-.3em E}[Y | \mathbf{1}_2 = 0] = {\rm I\kern-.3em E}[Y | \text{ sample belongs to population 1}] = \mu_1

  • On the other hand, the regression function is

{\rm I\kern-.3em E}[Y | \mathbf{1}_2 = x] = \beta_1 + \beta_2 x

  • Thus

{\rm I\kern-.3em E}[Y | \mathbf{1}_2 = 0] = \beta_1 + \beta_2 \cdot 0 = \beta_1 \qquad \implies \qquad \beta_1 = \mu_1

  • Similarly, by construction, we have that

Y | \text{sample belongs to population 2} \ \sim \ N(\mu_2, \sigma^2)

  • Therefore, by definition of \mathbf{1}_2, we get

{\rm I\kern-.3em E}[Y | \mathbf{1}_2 = 1] = {\rm I\kern-.3em E}[Y | \text{ sample belongs to population 2}] = \mu_2

  • On the other hand, the regression function is

{\rm I\kern-.3em E}[Y | \mathbf{1}_2 = x] = \beta_1 + \beta_2 x

  • Thus

{\rm I\kern-.3em E}[Y | \mathbf{1}_2 = 1] = \beta_1 + \beta_2 \qquad \implies \qquad \beta_1 + \beta_2 = \mu_2

  • Therefore, we have proven

\beta_1 = \mu_1 \,, \qquad \beta_1 + \beta_2 = \mu_2 \qquad \implies \qquad \beta_2 = \mu_2 - \mu_1

  • Recall the the regression model is

Y_i = \beta_1 + \beta_2 \, \mathbf{1}_{2} (i) + \varepsilon_i

  • The hypothesis for F-test for Overall Significance for above model is

H_0 \colon \beta_2 = 0 \,, \qquad H_1 \colon \beta_2 \neq 0

  • Since \beta_2 = \mu_2 - \mu_1, the above hypothesis is equivalent to H_0 \colon \mu_1 = \mu_2 \,, \qquad H_1 \colon \mu_1 \neq \mu_2

  • Hypotheses for F-test of Overall Significance and two-sample t-test are equivalent

  • In the Homework, we have also proven that the ML estimators for the model Y_i = \beta_1 + \beta_2 \, \mathbf{1}_{2} (i) + \varepsilon_i satisfy \hat{\beta}_1 = \overline{a} \,, \qquad \hat{\beta}_2 = \overline{b} - \overline{a}

  • With this information, it is easy to check that they are equivalent

    • F-statistic for Overall Significance
    • t-statistic for two-sample t-test
  • F-test of Overall Significance and two-sample t-test are equivalent

  • In particular, the (fitted) dummy variable regression model is

\begin{align*} Y_i & = \hat{\beta}_1 + \hat{\beta}_2 \, \mathbf{1}_{2} (i) + \varepsilon_i \\[10pt] & = \overline{a} + (\overline{b} - \overline{a}) \, \mathbf{1}_{2} (i) + \varepsilon_i \end{align*}

  • Therefore, the predictions are:

\begin{align*} {\rm I\kern-.3em E}[Y| \text{Sample is from population 1}] & = \overline{a} \\[10pt] {\rm I\kern-.3em E}[Y| \text{Sample is from population 2}] & = \overline{b} \end{align*}

ANOVA F-test and Regression

Now, consider the general ANOVA case

  • Assume given k independent populations with normal distribution N(\mu_i,\sigma^2)


  • Example: In Fridge sales example we have k = 4 populations (the 4 quarters)


  • The ANOVA hypothesis for difference in populations means is

\begin{align*} H_0 & \colon \mu_1 = \mu_2 = \ldots = \mu_k \\ H_1 & \colon \mu_i \neq \mu_j \text{ for at least one pair i and j} \end{align*}

  • Goal: Show the ANOVA F-test for above hypothesis can be obtained with regression

  • We want to introduce dummy variable regression model which models ANOVA

  • To each population, associate a dummy variable \mathbf{1}_{i}(j) = \begin{cases} 1 & \text{ if j-th sample belongs to population i} \\ 0 & \text{ otherwise} \\ \end{cases}

  • Denote by x_{i1}, \ldots, x_{in_i} the iid sample of size n_{i} from population i

  • Concatenate these samples into a long vector (length n_1 + \ldots + n_2) y = (\underbrace{x_{11}, \ldots, x_{1n_1}}_{\text{population 1}}, \, \underbrace{x_{21}, \ldots, x_{2n_2}}_{\text{population 2}} , \, \ldots, \, \underbrace{x_{k1}, \ldots, x_{kn_k}}_{\text{population k}})

  • Consider the dummy variable model (with \mathbf{1}_{1} omitted) Y_i = \beta_1 + \beta_2 \, \mathbf{1}_{2} (i) + \beta_3 \, \mathbf{1}_{3} (i) + \ldots + \beta_k \, \mathbf{1}_{k} (i) + \varepsilon_i

  • In particular, the regression function is {\rm I\kern-.3em E}[Y | \mathbf{1}_{2} = x_2 , \, \ldots, \, \mathbf{1}_{k} = x_k ] = \beta_1 + \beta_2 \, x_2 + \ldots + \beta_k \, x_k

  • By construction, we have that Y | \text{sample belongs to population i} \ \sim \ N(\mu_i , \sigma^2)

  • A sample point belongs to population 1 if and only if \mathbf{1}_{2} = \mathbf{1}_{3} = \ldots = \mathbf{1}_{k} = 0

  • Hence, we can compute the conditional expectation {\rm I\kern-.3em E}[ Y | \mathbf{1}_{2} = 0 , \, \ldots, \, \mathbf{1}_{k} = 0] = {\rm I\kern-.3em E}[Y | \text{sample belongs to population 1}] = \mu_1

  • On the other hand, by definition of regression function, we get {\rm I\kern-.3em E}[ Y | \mathbf{1}_{2} = 0 , \, \ldots, \, \mathbf{1}_{k} = 0] = \beta_1 + \beta_2 \cdot 0 + \ldots + \beta_k \cdot 0 = \beta_1 \quad \implies \quad \mu_1 = \beta_1

  • Similarly, a sample point belongs to population 2 if and only if \mathbf{1}_{2} = 1 \quad \text{and} \quad \mathbf{1}_{1} = \mathbf{1}_{3} = \ldots = \mathbf{1}_{k} = 0

  • Hence, we can compute the conditional expectation {\rm I\kern-.3em E}[ Y | \mathbf{1}_{2} = 1 , \, \mathbf{1}_{3} = 0, \, \ldots, \, \mathbf{1}_{k} = 0] = {\rm I\kern-.3em E}[Y | \text{sample belongs to population } A_2] = \mu_2

  • On the other hand, by definition of regression function, we get {\rm I\kern-.3em E}[ Y | \mathbf{1}_{2} = 1 , \, \mathbf{1}_{3} = 0, \, \ldots, \, \mathbf{1}_{k} = 0] = \beta_1 + \beta_2 \cdot 1 + \ldots + \beta_k \cdot 0 = \beta_1 + \beta_2

  • Therefore, we conclude that \mu_2 = \beta_1 + \beta_2

  • Arguing in a similar way, we can show that \mu_i = \beta_1 + \beta_i \,, \quad \forall \, i \geq 2

  • Therefore, we have proven \mu_1 = \beta_1 \,, \quad \mu_i = \beta_1 + \beta_i \quad \forall \, i \geq 2 \quad \, \implies \quad \, \beta_1 = \mu_1 \,, \quad \beta_i = \mu_i - \mu_1 \quad \forall \, \, i \geq 2

  • Recall that the regression model is Y_i = \beta_1 + \beta_2 \, \mathbf{1}_{2} (i) + \ldots + \beta_k \, \mathbf{1}_{k} (i) + \varepsilon_i

  • The hypothesis for F-test for Overall Significance for above model is H_0 \colon \beta_2 = \beta_3 = \ldots = \beta_k = 0 \,, \qquad H_1 \colon \exists \, i \in \{2, \ldots, k\} \text{ s.t. } \beta_i \neq 0

  • Since \beta_i = \mu_i - \mu_1 for all i \geq 2, the above is equivalent to H_0 \colon \mu_1 = \mu_2 = \ldots = \mu_k \, \qquad H_1 \colon \mu_i \neq \mu_j \text{ for at least one pair } i \neq j

  • Hypotheses for F-test of Overall Significance and ANOVA F-test are equivalent

  • Denote by \overline{x}_i the mean of the sample x_{i1}, \ldots, x_{i n_i} from population i

  • It is easy to prove that the ML estimators for the model Y_i = \beta_1 + \beta_2 \, \mathbf{1}_{2} (i) + \ldots + \beta_k \, \mathbf{1}_{k} (i) + \varepsilon_i satisfy \hat{\beta}_1 = \overline{x}_1 \,, \qquad \hat{\beta}_i = \overline{x}_i - \overline{x}_1 \, \quad \forall \, i \geq 2

  • With this information, it is easy to check that they are equivalent

    • F-statistic for Overall Significance
    • F-statistic for ANOVA F-test
  • F-test of Overall Significance and ANOVA F-test are equivalent

  • In particular, the (fitted) dummy variable regression model is

\begin{align*} Y_i & = \hat{\beta}_1 + \hat{\beta}_2 \, \mathbf{1}_{2} (i) + \hat{\beta}_k \, \mathbf{1}_{k} (i) + \varepsilon_i \\[10pt] & = \overline{x}_1 + (\overline{x}_2 - \overline{x}_1) \, \mathbf{1}_{2} (i) + \ldots + (\overline{x}_k - \overline{x}_1) \, \mathbf{1}_{k} (i) + \varepsilon_i \end{align*}

  • Therefore, the predictions are:

{\rm I\kern-.3em E}[Y| \text{Sample is from population i}] = \hat{\beta}_1 + \hat{\beta}_i = \overline{x}_i

Worked Example

  • The data in fridge_sales.txt links

    • Sales of fridges and Sales of durable goods
    • to the time of year (Quarter)
  • For the moment, ignore the data on the Sales of durable goods

  • Goal: Determine if Fridge sales are linked to the time of the year

  • There are two ways this can be achieved in R

    1. ANOVA F-test for equality of means – using the command \, \texttt{aov}
    2. Dummy variable regression approach – using the command \, \texttt{lm}


  • Code for this example is available here anova.R

  • Data is in the file fridge_sales.txt
    • We read the data into a data-frame as usual
    • The first 4 rows of the data-set are given below
# Load dataset on Fridge Sales
d <- read.table(file = "fridge_sales.txt", header = TRUE)

# Print first 4 rows
head(d, n=4)
  fridge.sales durable.goods.sales q1 q2 q3 q4 quarter
1         1317               252.6  1  0  0  0       1
2         1615               272.4  0  1  0  0       2
3         1662               270.9  0  0  1  0       3
4         1295               273.9  0  0  0  1       4


  • Quantitative variables
    • Fridge sales
    • Durable goods sales \, (ignore for now)
  • Qualitative variables
    • q1, q2, q3, q4
    • quarter

Preparing the data

  • The variables d$q1, d$q2, d$q3, d$q4 are vectors taking the values \, \texttt{0} and \, \texttt{1}
    • No further data processing is needed
    • Remember: To avoid dummy variable trap, only 3 of these 4 dummy variables can be included (if the model also includes an intercept term)


  • The variable d$quarter is a vector taking the values \, \texttt{1}, \texttt{2}, \texttt{3}, \texttt{4}
    • Need to convert this into a factor


d$quarter <- factor(d$quarter)

print(d$quarter)
 [1] 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
Levels: 1 2 3 4

# Make boxplot of Fridge Sales vs Quarter
boxplot(fridge.sales ~ quarter, data = d,
        main = "Quarterly Fridge sales", ylab = "Fridge sales")
  • Fridge sales seem higher in Q2 and Q3

  • We suspect population means are different: need one-way ANOVA F-test

ANOVA and Regression

As already mentioned, there are 2 ways of performing ANOVA F-test

  1. ANOVA F-test for equality of means – using the command \, \texttt{aov}
  2. Dummy variable regression approach – using the command \, \texttt{lm}


  • As already discussed in the previous Part,
    • Both approaches lead to the same numerical answer

1. ANOVA F-test with aov

  • We have Fridge Sales data for each quarter
    • Each Quarter represents a population
    • Let \mu_i denote the average (population) fridge sales in quarter i
  • Hypothesis for comparing quarterly fridge sales are

\begin{align*} H_0 & \colon \mu_{1} = \mu_{2} = \mu_3 = \mu_4 \\ H_1 & \colon \mu_i \neq \mu_j \, \text{ for at least one pair } i \neq j \end{align*}

  • To decide on the above hypothesis, we use the ANOVA F-test

  • Already seen an example of this with the calories consumption dataset

# Perform ANOVA F-test - Recall: quarter needs to be a factor
anova <- aov(fridge.sales ~ quarter, data = d)

# Print output
summary(anova)


            Df Sum Sq Mean Sq F value   Pr(>F)
quarter      3 915636  305212    10.6 7.91e-05 ***
Residuals   28 806142   28791
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1


  • The F-statistic for the ANOVA F-test is \,\, F = 10.6

  • The p-value for ANOVA F-test is \,\, p = 7.91 \times 10^{-5}

  • Therefore p < 0.05, and we reject H_0

    • Evidence that average Fridge sales are different in at least two quarters

2. Dummy variable Regression approach

  • Encode each Quarter with one dummy variable \mathbf{1}_i

\mathbf{1}_i(j) = \begin{cases} 1 & \text{ if sample j belongs to Quarter i} \\ 0 & \text{ otherwise} \\ \end{cases}

  • Let Y denote the Fridge sales data

  • Consider the dummy variable regression model

Y = \beta_1 + \beta_2 \mathbf{1}_2 + \beta_3 \mathbf{1}_3 + \beta_4 \mathbf{1}_4 + \varepsilon

  • Note: We have dropped the variable \mathbf{1}_1 to avoid dummy variable trap

We can fit the following model in 2 equivalent ways

\begin{equation} \tag{1} Y = \beta_1 + \beta_2 \mathbf{1}_2 + \beta_3 \mathbf{1}_3 + \beta_4 \mathbf{1}_4 + \varepsilon \end{equation}

  1. Use quarter dummy variables \, \texttt{q2}, \, \texttt{q3}, \, \texttt{q4} already present in the dataset
# We drop q1 to avoid dummy variable trap
dummy <- lm (fridge.sales ~ q2 + q3 + q4, data = d)

summary(dummy)


  1. Use quarters stored in the factor \, \texttt{quarter}
    • lm automatically encodes \, \texttt{quarter} into 3 dummy variables \, \texttt{q2}, \, \texttt{q3}, \, \texttt{q4}
dummy.equivalent <- lm(fridge.sales ~ quarter, data = d)

summary(dummy.equivalent)


  • Both commands fit the same linear model (1)

Output for first command

Call:
lm(formula = fridge.sales ~ q2 + q3 + q4, data = d)

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  1222.12      59.99  20.372  < 2e-16 ***
q2            245.37      84.84   2.892 0.007320 **
q3            347.63      84.84   4.097 0.000323 ***
q4            -62.12      84.84  -0.732 0.470091
---
Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Residual standard error: 169.7 on 28 degrees of freedom
Multiple R-squared:  0.5318,    Adjusted R-squared:  0.4816
F-statistic:  10.6 on 3 and 28 DF,  p-value: 7.908e-05


Output for second command

Call:
lm(formula = fridge.sales ~ quarter, data = d)

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  1222.12      59.99  20.372  < 2e-16 ***
quarter2      245.37      84.84   2.892 0.007320 **
quarter3      347.63      84.84   4.097 0.000323 ***
quarter4      -62.12      84.84  -0.732 0.470091
---
Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Residual standard error: 169.7 on 28 degrees of freedom
Multiple R-squared:  0.5318,    Adjusted R-squared:  0.4816
F-statistic:  10.6 on 3 and 28 DF,  p-value: 7.908e-05


  • The two outputs are the same (only difference is variables names)

  • \, \texttt{quarter} is a factor with four levels \, \texttt{1}, \texttt{2}, \texttt{3}, \texttt{4}

  • Variables \, \texttt{quarter2}, \texttt{quarter3}, \texttt{quarter4} refer to the levels \, \texttt{2}, \texttt{3}, \texttt{4}

Output for second command

Call:
lm(formula = fridge.sales ~ quarter, data = d)

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  1222.12      59.99  20.372  < 2e-16 ***
quarter2      245.37      84.84   2.892 0.007320 **
quarter3      347.63      84.84   4.097 0.000323 ***
quarter4      -62.12      84.84  -0.732 0.470091
---
Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Residual standard error: 169.7 on 28 degrees of freedom
Multiple R-squared:  0.5318,    Adjusted R-squared:  0.4816
F-statistic:  10.6 on 3 and 28 DF,  p-value: 7.908e-05


  • \, \texttt{lm} interprets \, \texttt{quarter2}, \texttt{quarter3}, \texttt{quarter4} as dummy variables

  • Note that \, \texttt{lm} automatically drops \, \texttt{quarter1} to prevent dummy variable trap

  • Thus: \, \texttt{lm} behaves the same way as if we passed dummy variables \, \texttt{q2}, \texttt{q3}, \texttt{q4}

Computing regression coefficients

Call:
lm(formula = fridge.sales ~ q2 + q3 + q4, data = d)

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  1222.12      59.99  20.372  < 2e-16 ***
q2            245.37      84.84   2.892 0.007320 **
q3            347.63      84.84   4.097 0.000323 ***
q4            -62.12      84.84  -0.732 0.470091


  • Recall that \, \texttt{Intercept} refers to coefficient for \, \texttt{q1}

  • Coefficients for \, \texttt{q2}, \texttt{q3}, \texttt{q4} are obtained by summing \, \texttt{Intercept} to coefficient in appropriate row

Computing regression coefficients

Call:
lm(formula = fridge.sales ~ q2 + q3 + q4, data = d)

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  1222.12      59.99  20.372  < 2e-16 ***
q2            245.37      84.84   2.892 0.007320 **
q3            347.63      84.84   4.097 0.000323 ***
q4            -62.12      84.84  -0.732 0.470091


Dummy variable Coefficient formula Estimated coefficient
\texttt{q1} \beta_1 1222.12
\texttt{q2} \beta_1 + \beta_2 1222.12 + 245.37 = 1467.49
\texttt{q3} \beta_1 + \beta_3 1222.12 + 347.63 = 1569.75
\texttt{q4} \beta_1 + \beta_4 1222.12 - 62.12 = 1160

Regression formula

  • Therefore, the linear regression formula obtained is

\begin{align*} {\rm I\kern-.3em E}[\text{ Fridge sales } ] = & \,\, 1222.12 \times \, \text{Q1} + 1467.49 \times \, \text{Q2} + \\[15pts] & \,\, 1569.75 \times \, \text{Q3} + 1160 \times \, \text{Q4} \end{align*}

  • Recall that Q1, Q2, Q3 and Q4 assume only values 0 / 1 and

\text{Q1} + \text{Q2} + \text{Q4} + \text{Q4} = 1

Sales estimates

  • Therefore, the expected sales for each quarter are

\begin{align*} {\rm I\kern-.3em E}[\text{ Fridge sales } | \text{ Q1} = 1] & = 1222.12 \,, \qquad {\rm I\kern-.3em E}[\text{ Fridge sales } | \text{ Q2} = 1] = 1467.49 \\[15pts] {\rm I\kern-.3em E}[\text{ Fridge sales } | \text{ Q3} = 1] & = 1569.75 \,, \qquad {\rm I\kern-.3em E}[\text{ Fridge sales } | \text{ Q4} = 1] = 1160 \end{align*}

  • These estimates coincide with sample means in each quarter
    (As already noted, this is true for any dummy variable regression model)
# For example, compute average fridge sales in Q3

fridge.sales.q3 <- d$fridge.sales[ d$quarter == 3 ]

mean(fridge.sales.q3)
[1] 1569.75

ANOVA F-test from regression

  • ANOVA F-test is equivalend to F-test for Overall Significance of model Y = \beta_1 + \beta_2 \mathbf{1}_2 + \beta_3 \mathbf{1}_3 + \beta_4 \mathbf{1}_4 + \varepsilon

  • Therefore, look at F-test line in the summary of model \texttt{lm(fridge} \, \sim \, \texttt{q2 + q3 + q4)}

F-statistic:  10.6 on 3 and 28 DF,  p-value: 7.908e-05


  • F-statistic is \,\, F = 10.6 \, , \quad p-value is \,\, p = 7.908 \times 10^{-5}

  • These coincide with F-statistic and p-value for ANOVA F-test

  • Therefore p < 0.05, and we reject H_0

    • Evidence that average Fridge sales are different in at least two quarters

Part 9:
ANCOVA

ANCOVA

Linear regression models seen so far:

  • Regular regression: All X variables are quantitative
  • ANOVA: Dummy variable models, where all X variables are qualitative

ANCOVA:

  • means Analysis of Covariance
  • Refers to regression models containing both:
    • Qualitative dummy variables and
    • quantitative variables

ANCOVA main feature

  • Regression models with different slopes / intercept for different parts of the dataset

  • These are sometimes referred to as segmented regression models

  • For example, consider the ANCOVA regression model

Y=\beta_1+\beta_2 X + \beta_3 Q + \beta_4 XQ + \varepsilon

  • X is quantitative variable; Q is qualitative, with values Q = 0, 1

  • XQ is called interaction term

With reference to the ANCOVA model Y=\beta_1+\beta_2 X + \beta_3 Q + \beta_4 XQ + \varepsilon

  • If Q=0 Y=\beta_1+\beta_2 X+ \varepsilon

  • If Q=1, the result is a model with different intercept and slope Y=(\beta_1+\beta_3)+(\beta_2 +\beta_4)X+ \varepsilon

  • If Q=1 and \beta_4=0, we get model with a different intercept but the same slope Y=(\beta_1+\beta_3)+\beta_2 X+ \varepsilon

  • ANCOVA models are simply fitted with lm

Worked Example

  • Code for this example is available here ancova.R

  • The data in fridge_sales.txt links

    • Sales of fridges and Sales of durable goods
    • to the time of year (Quarter)
  • Goal: Predict Fridge sales in terms of durable goods sales and time of the year

  • Denote by F the Fridge sales and by D the durable goods sales

  • To predict Fridge sales from durable goods sales, we could simply fit the model

F = \beta_1 + \beta_2 D + \varepsilon

  • However, the intercept \beta_1 can potentially change depending on the quarter

  • To account for quarterly trends, we fit ANCOVA model instead

Preparing the data

# Load dataset on Fridge Sales
d <- read.table(file = "fridge_sales.txt", header = TRUE)

# Print first 4 rows
head(d, n=4)
  fridge.sales durable.goods.sales q1 q2 q3 q4 quarter
1         1317               252.6  1  0  0  0       1
2         1615               272.4  0  1  0  0       2
3         1662               270.9  0  0  1  0       3
4         1295               273.9  0  0  0  1       4


  • Variables d$q1, d$q2, d$q3, d$q4 are vectors taking the values \, \texttt{0} and \, \texttt{1}

  • The variable d$quarter is a vector taking the values \, \texttt{1}, \texttt{2}, \texttt{3}, \texttt{4}

    • Need to convert this into a factor
d$quarter <- factor(d$quarter)

ANCOVA Model

  • As before, we encode each Quarter with one dummy variable \mathbf{1}_i

\mathbf{1}_i(j) = \begin{cases} 1 & \text{ if sample j belongs to Quarter i} \\ 0 & \text{ otherwise} \\ \end{cases}

  • The ANCOVA model is

F = \beta_1 + \beta_2 \mathbf{1}_2 + \beta_3 \mathbf{1}_3 + \beta_4 \mathbf{1}_4 + \beta_5 D + \varepsilon

  • Note: We have dropped the variable \mathbf{1}_1 to avoid dummy variable trap

  • This way, the intercept will vary depending on the quarter

We can fit the ANCOVA model below in 2 equivalent ways

\begin{equation} \tag{2} F = \beta_1 + \beta_2 \mathbf{1}_2 + \beta_3 \mathbf{1}_3 + \beta_4 \mathbf{1}_4 + \beta_5 D + \varepsilon \end{equation}

  1. Use quarter dummy variables \, \texttt{q2}, \, \texttt{q3}, \, \texttt{q4} already present in the dataset
# Drop q1 to avoid dummy variable trap
ancova <- lm(fridge.sales ~ q2 + q3 + q4 + durable.goods.sales, data = d)


  1. Use quarters stored in the factor \, \texttt{quarter}
    • lm automatically encodes \, \texttt{quarter} into 3 dummy variables \, \texttt{q2}, \, \texttt{q3}, \, \texttt{q4}
# Fit ANCOVA model
ancova.equiv <- lm(fridge.sales ~ quarter + durable.goods.sales, data = d)


  • Both commands fit the same linear model (2)

Output

Computing regression coefficients

Call:
lm(formula = fridge.sales ~ q2 + q3 + q4 + durable.goods.sales,
    data = d)
Coefficients:
                    Estimate Std. Error t value Pr(>|t|)
(Intercept)         456.2440   178.2652   2.559 0.016404 *
q2                  242.4976    65.6259   3.695 0.000986 ***
q3                  325.2643    65.8148   4.942 3.56e-05 ***
q4                  -86.0804    65.8432  -1.307 0.202116
durable.goods.sales   2.7734     0.6233   4.450 0.000134 ***


  • Recall that \, \texttt{Intercept} refers to coefficient for \, \texttt{q1}

  • Coefficients for \, \texttt{q2}, \texttt{q3}, \texttt{q4} are obtained by summing \, \texttt{Intercept} to coefficient in appropriate row

Computing regression coefficients

Call:
lm(formula = fridge.sales ~ q2 + q3 + q4 + durable.goods.sales,
    data = d)
Coefficients:
                    Estimate Std. Error t value Pr(>|t|)
(Intercept)         456.2440   178.2652   2.559 0.016404 *
q2                  242.4976    65.6259   3.695 0.000986 ***
q3                  325.2643    65.8148   4.942 3.56e-05 ***
q4                  -86.0804    65.8432  -1.307 0.202116
durable.goods.sales   2.7734     0.6233   4.450 0.000134 ***


Variable Coefficient formula Estimated coefficient
\texttt{q1} \beta_1 \approx 456.24
\texttt{q2} \beta_1 + \beta_2 456.244 + 242.4976 \approx 698.74
\texttt{q3} \beta_1 + \beta_3 456.244 + 325.2643 \approx 781.51
\texttt{q4} \beta_1 + \beta_4 456.244 - 86.0804 \approx 370.16
D \beta_5 \approx 2.77

Regression formula and lines

  • Therefore, the linear regression formula obtained is

\begin{align*} {\rm I\kern-.3em E}[\text{ Fridge sales } ] = & \,\, 456.24 \times \, \text{Q1} + 698.74 \times \, \text{Q2} + \\[5pts] & \,\, 781.51 \times \, \text{Q3} + 370.16 \times \, \text{Q4} + 2.77 \times \text{D} \end{align*}

  • Therefore, we obtain the following regression lines
Quarter Regression line
Q1 F = 456.24 + 2.77 \times \text{D}
Q2 F = 698.74 + 2.77 \times \text{D}
Q3 F = 781.51 + 2.77 \times \text{D}
Q4 F = 370.16 + 2.77 \times \text{D}
  • Each quarter has a different intercept: Different baseline fridge sales

Conclusion

  • We compare the ANCOVA model to the simple linear model
# Fit simple linear model
linear <- lm(fridge.sales ~ durable.goods.sales, data = d)

# F-test for Model Selection
anova(linear, ancova)


Analysis of Variance Table

Model 1: fridge.sales ~ durable.goods.sales
Model 2: fridge.sales ~ quarter + durable.goods.sales
  Res.Df     RSS Df Sum of Sq     F    Pr(>F)
1     30 1377145
2     27  465085  3    912060 17.65 1.523e-06 ***


  • The p-value is p < 0.05 \quad \implies \quad Reject H_0

  • The ANCOVA model offers a better fit than the linear model

References

[1]
Gujarati, D. N., Porter, D. C., Basic econometric, fifth edition, McGraw-Hill, 2009.
